ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
BEFORE THE ILLINOIS POLLUTION CONTROL BOARD
OF THE STATE OF ILLINOIS
MARATHON ASHLAND PETROLEUM. LLC
)
Wastewater Treatment Plant and Benzene
)
NESHAP Air Controls
)
PCB 06-
(Tax Certification)
PROPERTY IDENTIFICATION NUMBER
)
51-34-1-21 or portion thereof
)
NOTICE
TO :
Dorothy Gunn, Clerk
John S. Swearingen
Illinois Pollution Control Board
Marathon Ashland Petroleum
State of Illinois Center
Refinery Office Building
100 W. Randolph Street, Suite 11-500
Robinson, Illinois 62454
Chicago, Illinois 60601
Steve Santarelli
Illinois Department of Revenue
101 West Jefferson
P.O. Box 19033
Springfield, Illinois 62794
PLEASE TAKE NOTICE that I have today electronically filed with the Office of
the Pollution Control Board the APPEARANCE and RECOMMENDATION of the
Illinois Environmental Protection Agency, a copy of which is herewith served upon the
applicant and a representative of the Illinois Department of Revenue
.
Respectfully submitted by,
/s/
Robb H. Layman
Assistant Counsel
Date: December 22, 2005
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
1021 North Grand Avenue East
P.O. Box 19276
Springfield, IL 62794-9276
Telephone: (217) 524-9137
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
BEFORE THE ILLINOIS POLLUTION CONTROL BOARD
OF THE STATE OF ILLINOIS
MARATHON ASHLAND PETROLEUM, LLC
)
Wastewater Treatment Plant and Benzene
)
NESHAP Air Controls
)
)
PCB 06-
(Tax Certification)
PROPERTY IDENTIFICATION NUMBER
)
51-34-I-2I or portion thereof
)
APPEARANCE
I hereby file my Appearance in this proceeding on behalf of the Illinois
Environmental Protection Agency
.
Respectfully submitted by,
/s/
Robb H. Layman
Assistant Counsel
Date: December 22, 2005
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
1021 North Grand Avenue East
P.O. Box 19276
Springfield, Illinois 62794-9276
Telephone: (217) 524-9137
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
BEFORE THE ILLINOIS POLLUTION CONTROL BOARD
OF THE STATE OF ILLINOIS
MARATHON ASHLAND PETROLEUM, LLC
)
Wastewater Treatment Plant and Benzene )
NESHAP Air Controls
)
)
PCB 06-
(Tax Certification)
PROPERTY IDENTIFICATION NUMBER
)
51-34-1-21 or portion thereof
)
RECOMMENDATION
NOW COMES the ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
("Illinois EPA"), through its attorneys, and pursuant to 35 III . Adm. Code 125.204 of the
ILLINOIS POLUTION CONTROL BOARD'S ("Board") procedural regulations, files
the Illinois EPA's Recommendation in the above-referenced request for tax certification
of pollution control facilities. In support thereof, the Illinois EPA states as follows
:
On December 30, 2004, the Illinois EPA received a request and supporting
information from MARATHON ASHLAND PETROLEUM, LLC, ("Marathon")
concerning the proposed tax certification of certain air emission sources and/or
equipment located at its Robinson refinery in Crawford County, Illinois . The application
request identified the nature of the subject operations as the Wastewater Treatment Plant
and Benzene NESHAPs Air Controls. A copy of the relevant portions of the application
is attached hereto . Exhibit A]
.
2 .
On April 7, 2005, the Illinois EPA received a separate request and
supporting application that identified the nature of the subject operations as the
"W WTP." A copy of the relevant portions of the application is attached hereto . [Exhibit
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
**
* * * PCB 2006-110 * * * * *
BI. The cover letter contended that the original application had been submitted earlier
with other applications and that the attached inlbnnation was a resubmission . The letter
suggested that the company believed that the original application had been lost or
overlooked, as the other applications to which it was purportedly attached had previously
been granted certification by the Board in January 2005
.
3 .
A review of both applications reveals that the applicant is essentially
seeking relief for one overall project. Both applications generally describe the same
Wastewater Treatment Plan operations and the plant upgrades are described similarly
.
While the accounting data is different, it is assumed that the later submission reflected
more up-to-date cost information. In light of this information, as well as the explanation
offered in the later application's cover letter, the Illinois EPA treated the applications as
one
.
4
.
The applicant's address is as follows
:
Marathon Ashland Petroleum,
LLC
Refinery Office Building
Robinson, Illinois 62454
5
.
The pollution control facilities involved in this request are located at the
aforementioned address and consist of modifications to the existing oily sewer system
.
The project, previously described as the Wastewater Treatment Plant and Benzene
NESHAP Air Controls, affects various controls on approximately 1,140 oily sewer
components
(i .e ., catch basins, manholes, hub drains) throughout the refinery . The
purpose of the modifications is to reduce volatile organic material and/or benzene
emissions that might otherwise escape the wastewater treatment system through vapor
loss. The Wastewater Treatment Plant is not itself a pollution control device for
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
purposes of reducing air emissions, however . a component of the overall process involves
a reduction in emissions of air contaminants . The equipment identified in the application
that reduce air emissions in this regard are the oily water sewer vapor controls, vapor
controls at the wastewater treatment plant and vapor controls for the slop oil tankage
.
6
.
Section 1 I-10 of the Property Tax Code, 35 ILCS 200/11-10 (2002),
defines "pollution control facilities" as
:
"any system, method, construction, device or appliance appurtenant
thereto, or any portion of any building or equipment. that is designed
.
constructed, installed or operated for the primary purpose of: (a)
eliminating, preventing, or reducing air or water pollution
.
. . or (b)
treating, pretreating, modifying or disposing of any potential solid, liquid,
gaseous pollutant which if released without treatment, pretreatment,
modification or disposal might be harmful, detrimental or offensive to
human, plant or animal life, or to property ."
7
.
Pollution control facilities are entitled to preferential tax treatment, as
provided by 35 ILCS 200/11-5 (2002)
.
8
.
Based on information in the application and the underlying purpose of the
Wastewater Treatment Plant and Benzene NESHAP Air Controls to prevent, eliminate or
reduce air pollution, it is the Illinois EPA's engineering judgment that the afore-
mentioned components of the described project and/or equipment may be considered as
"pollution control facilities" in accordance with the statutory definition and consistent
with the Board's regulations at 35 III. Adm. Code 125.200. Exhibit C/ .
9 .
The Illinois EPA notes that it is unclear from the application as to whether
the cost estimates are representative of only those Wastewater Treatment Plant and
Benzene NESHAP-related upgrades that relate to the reduction of air contaminants or,
alternatively, the total costs of the project, including those that are unrelated to vapor
controls upgrades
(i.e ., lift station, effluent sump, etc). For purposes of this Tax
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
Certification, preferential tax treatment should only be afforded tot he costs of the vapor-
related pollution control equipment
.
10 .
Because the aforementioned components of the Wastewater Treatment
Plant and Benzene NESt1APs Air Controls satisfy the aforementioned criteria, the Illinois
EPA recommends that the Board grant the applicant's requested tax certification
consistent with the conditions expressed herein
.
Respectfully submitted by,
ILLINOIS ENVIRONMENTAL PROTECTION
AGENCY
/s/
Robb H. Layman
Assistant Counsel
DATED: December 22, 2004
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
1021 North Grand Avenue East
P.O. Box 19276
Springfield, Illinois 62794-9276
Telephone: (217) 524-9137
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****

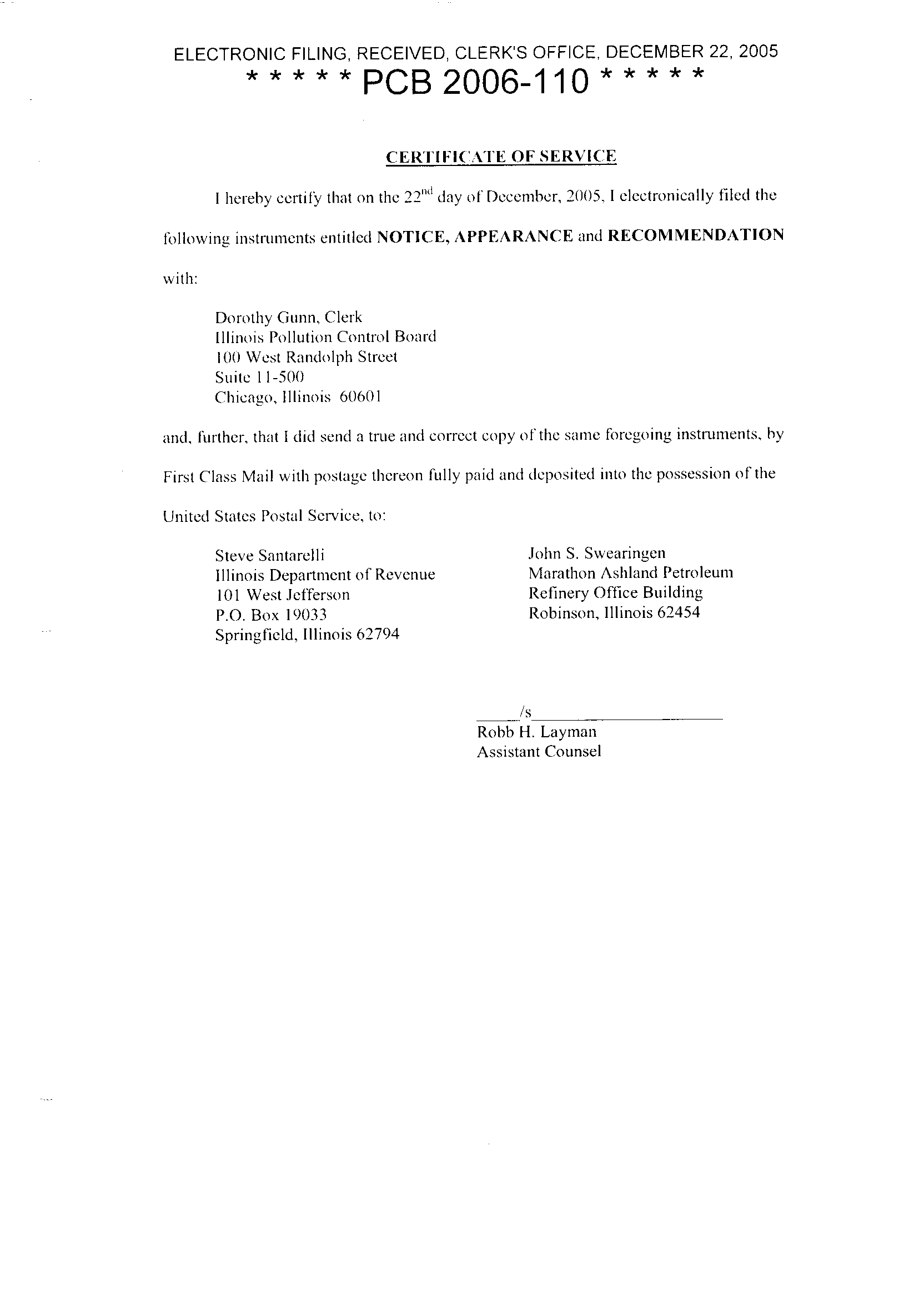

CERTIFICATE OF SERVICE
I hereby certify that on the 22°`
1 day of December, 2005, I electronically filed the
following instruments entitled NOTICE, APPEARANCE and RECOMMENDATION
with
:
Dorothy Gunn, Clerk
Illinois Pollution Control Board
100 West Randolph Street
Suite 11-500
Chicago, Illinois 60601
and, further, that I did send a true and correct copy of the same foregoing instruments, by
First Class Mail with postage thereon fully paid and deposited into the possession of the
United States Postal Service, to
:
Steve Santarelli
John S. Swearingen
Illinois Department of Revenue
Marathon Ashland Petroleum
101 West Jefferson
Refinery Office Building
P.O. Box 19033
Robinson, Illinois 62454
Springfield, Illinois 62794
/s
Rohb H. Layman
Assistant Counsel
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
* * * * * PCB 2006-110 * * * * *
IL 532-0222
APC 151 (Rev. 8/00)
Tax
Certification
far Pollution Control Facilities
Page
f oft
8/00 -
F'
ftAf:Sr-i
r'f
APPLICATION FOR CERTIFICATION (PROPERTY TAX TREATMENT)
POLLUTION CONTROL FACILITY
AIRS
WATER ®
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
P. O. Box 19276. Springfield, IL 627949276
his Agency is authonn+d to request this
information under Illinois Revised Statues, 1979,
Chapici,
120,
Section 502a-5. Disclosure
of ibis
information
Is
voluntary. However, failure to
comply could prevent
your
application from
being processed or could result in denial
of
your
application for cenifcation .
FOR AGENCY USE
Flits No.
Date Received
Certification No .
Date
Sec A
Company Name
Marathon Ashland Petroleum
LLC
Person Authorized to Receive Certification
Person to Contact for Additional Details
John 3wearinnen
6dnnis Baker
-
Street Address
Street Address
Refinery Office Buildinq
539
South Main Street
Municipality, State & Zip Code
Municipality, State & Zip Code
Robinson,
IL 62454
Findlay,
OH 45840
Telephone Number
Telephone Number
<
f1R-544-2171
419-421-3759
Location of Facility
Quarter Section
Township
Range
unicipalrty
Robinson
Robinson
ownshtp
Street Address
Route
33
County
Book
Crawford
Number
Property Identification Number
Parcel Number
.3
r
of 51-34-1-21
S B
o
u4
a
<0
Nature of Operations Conducted at the Above Location
A t E
78
r7
Petroleum Refining
1100)-1
Wastewater Treatment Plant and Rpnipne NFSHAPc Air Cnntrnlc
Water Pollution Control Construction Permit No.
Date Issued
NPDES PERMIT No
IL-000-4073
Date Issued
EViration Date
1991
March
1989
Air Pollution Control Construction Permit No
Joint
01100018
Date Issued
November
18
2002
Air Pollution Control Operating Permit No .
Joint
011000
.18,-96010007
Title
V
Date Issued
No
m
sec- C
a
a ~
i
a
a

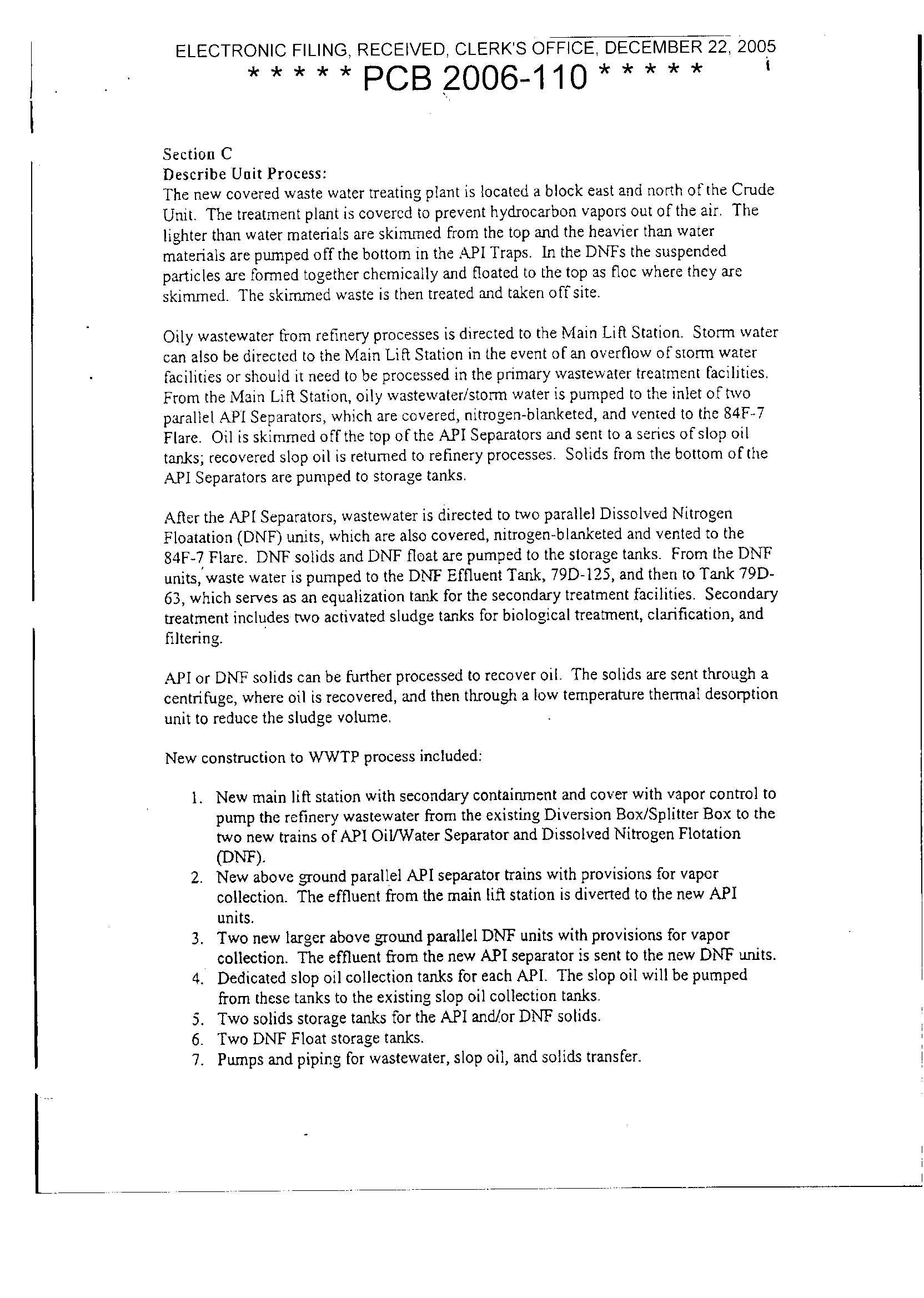

Describe Unit Process
See Attached

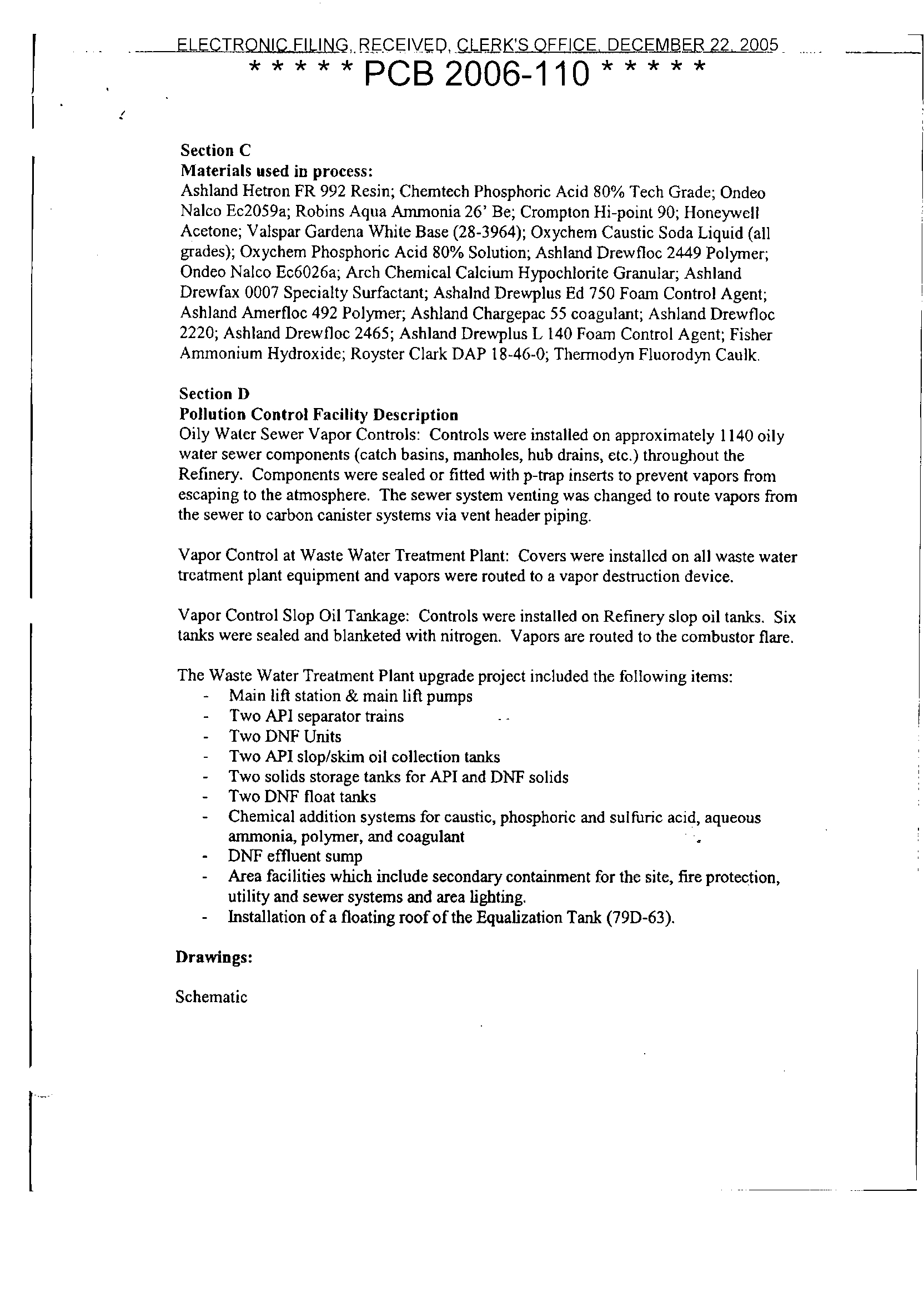

Materials Used in Process
See Attached
Sec. D
J=
og
0,
Z
p0
a4
Describe Pollution Abatement Control Facility
See Attached
ELECTRONIC FILING, RECEIVED,_ CLERK'S OFFICE, DECEMBER 22, 2005_
PCB 2006-110
TaxCeo1cntionfarPollution Con"] Facilities
Page2of2
8100

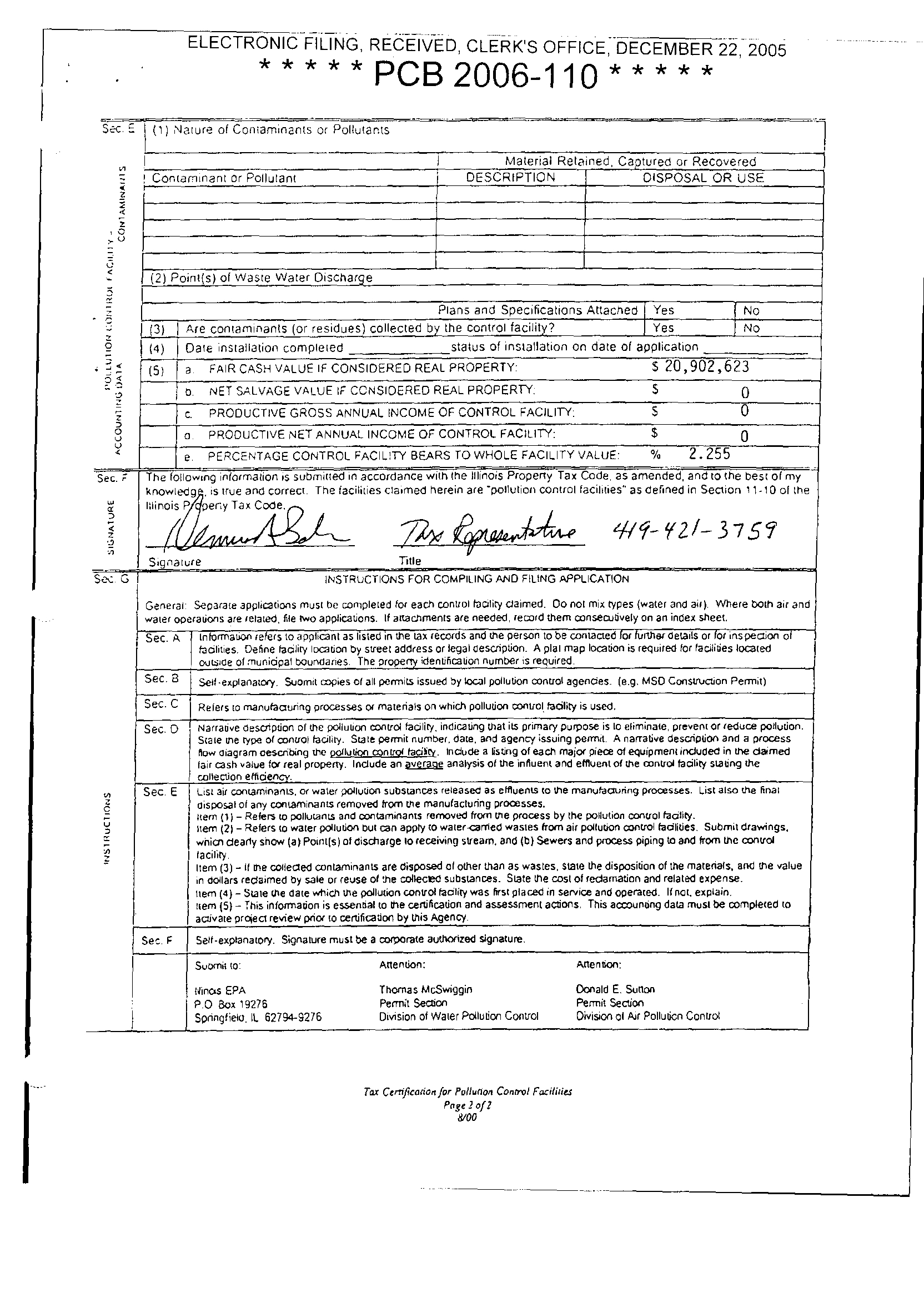

Sec. E
(1) Nature of Contaminants or Pot IuIant
Benzene, Volatile Organic Compounds
(VOCs)
Material Retained, Captured or Recovered
''
Contaminant or Pollutant
DESCRIPTION
DISPOSAL OR USE
Benzene
Benzene
WWTP
Volatile Organic Compounds
VOCs
WWTP
(2) Point(s) of Waste Water Discharge
NPDFS
- Permi ttpd Outfal l
o
o
z
°
5
a
o
° az
`z
Plans and Specifications Attached
Yes
XX
No
(3)
Are contaminants (or residues) collected by the control facility?
Yes Xy
No
(4)
Date installation completed
?no?
status of installation on date of application
t
nny
11. 1
(5)
a .
FAIR CASH VALUE IF CONSIDERED REAL PROPERTY
:
$ ~
pp 3
b .
NET SALVAGE VALUE IF CONSIDERED REAL PROPERTY
:
$
L/
S n 4 7
c
PRODUCTIVE GROSS ANNUAL INCOME OF CONTROL FACILITY
:
$
2 x
•_
iC e
d .
PRODUCTIVE NET ANNUAL INCOME OF CONTROL FACILITY
:
$
7cRo
a .
PERCENTAGE CONTROL FACILITY BEARS TO WHOLE FACILITY VALUE :
%
.3
.2 q
Sec. F
a
0
The following information is submitted in accordance with the Illinois Property Tax Code, as amended, and to the best of my
knowledge, is true and correct. The facilities claimed herein are' pollution control facilities' as defined in Section 11-10 of the
Illinois Property Tax Code
.
(Zl29ldte
Sig
Lure
John Swearingen
Title
Illinois Refining Division Manager
Sec. G
INSTRUCTIONS FOR COMPILING AND FILING APPLICATION
General: Separate applications must be completed for each control facility claimed . Do not mix types (water and air). Where both air and
water operations are related, file two applications. If attachments are needed, record them oonsecutivey on an index sheet.
Sec. A
Information refers to applicant as listed In the tax records and the person to be contacted for further details or for ins pedion of
facilities. Define facility location by street address or legal description . A plat map location is required for facilities located
outside of municipal boundaries . The property identification number is required
.
Sec B
Self-explanatory. Submit copies ofan permits issued by local pollution control agencies
.
(e.g . MSD Concoction Permi)
Sec C
Refers to manufacturing processes or materials on which pollution control facility is used .
Sec. D
Narrative description of the pollution control facility, indicating that its primary purpose is to eliminate, prevent or reduce pollution
.
State the ype of control facility . State permit number, date, and agency issuing permit. A narrative description and a process
lbw diagram describing the pollution contra
facility .
Include a listing of each major piece of equipment included In the claimed
fair cash value for real property. Include an pveracM analysis of the influent and effluent of he control facility stating the
collection efficiency
.
y
Sec. E
List air Contaminants, or water pollution substances released as effluents to the manufacturing processes . List also the final
o
disposal of any contaminants
removed
from the manufacturing processes.
F
Item (1)-Refers to pollutants and contaminants removed from the process by the pollution control facility
.
y
Item (2)-Refers to water pollution but can applyto watercarried wastes from air pollution control facilities. Submit drawings,
which dearly show (a) Point(s) of discharge to receiving stream, and (b) Sewers and process piping to and from the control
z
facility.
Item (3) - If the collected contaminants are disposed of other than as wastes, state the disposition of the materials, and the value
in dollars reclaimed by sale or reuse of the collected substances. State the cost of reclamation and related expense .
Item (4)-State the date which the pollution control fadfrty, was first placed In service and operated. If not, explain .
Item (5)-This Information Is essential to the certification and assessment actions. This accounting data must be completed to
activate project review polo to certification by this Agency.
Sec. F
Self-explanatory. Signature must be a corporate authorized signature.
Submit
to:
Attention:
Attention :
Ignots EPA
Thomas McSviggin
Donald E. Sutton
P.O. Box 19276
Permit Section
Pe"it section
Springfield, IL 62794-9276
Division of Water Pollution Control
Division of Mr Pollution Control
ELECTRONIC FILING, RECEIVED CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
Section C
Describe Unit Process :
The wastewater treatment plant (W WTP) is responsible for treating process wastewater
and storm water runoff prior to discharge through an NPDES permitted outfall . There are
two main routes for water to enter the WWTP . The first is through the oily sewer system,
the second is through the stormwater collection system .
The oily sewer system collects the water from process units and tankfarm water draws
.
This water enters the W WTP at the Diversion Box along with stripped sour water. The
flow then enters the Main Lift Station where it is pumped to two parallel API traps (oil
water separators). While in the API traps, oil in the water floats to the top and is removed
by skimmers. Solids in the water sink to the bottom and are pumped to' solids handling,
The water next flows to the Flocculation section of the two parallel DNF tanks, where
chemicals are added that help remove additional oil and solids by causing the oil and
solids to form larger particles. The water flows into the main section of the DNFs, where
fine nitrogen bubbles are injected that help the oil and particles float to the top of the tank
while heavier solids sink to the bottom . Both the oil and solids are removed, oils
recovered and reprocessed, and the final solids properly disposed offsite .
From the DNFs, the water flows into tank 125, which is an aboveground sump that
allows pumps to transfer the water to the Equalization Tank . On the way to the
Equalization Tank, ammonia and phosphoric acid are added as nutrients as needed
.
The other route for water to enter the W WTP is through the stormwater collection
system. Water from the Boilerhouse, refinery storm sewer system and part of the
tankfarm is collected in the stormwater sump, which pumps the water to the stormwater
tanks 79D-74A, B and C. From stormwater tanks, the water is pumped into the
Equalization Tank at a measured rate
.
In the Equalization Tank, the water from the API traps and the stormwater tanks
combine. The purpose of the Equalization Tank is to provide a large water volume which
dampens the swings in the pollutant load to the aeration tanks .
Upon leaving the Equalization Tank, the flow goes to the Aeration tanks (79D-64A and
B). The Aeration tanks may be operated in parallel or in series flow. In the Aeration
tanks, the water is mixed with air and bacteria that biologically break down the oil and
other wastes in the water .
The water then flows to the Final Clarifier, where the solids settle to the bottom . The
solids are either pumped back to the aeration tanks to maintain the population of bacteria
in the system or removed from the system maintaining the proper concentration. The
water is pumped from the clarifier to sand filters, where any additional solids are
removed. Finally, the water enters the Effluent Box where it leaves the refinery and is
discharged to Robinson creek
.
ELECTRONIC FILINQ.RECEIVEQ, .QLF--BK'S OFFICE, DECEMB_EB 22 .2005
*****PCB2006-110*****
Section C
Materials used in process
:
Ashland Hetron FR 992 Resin; Chemtech Phosphoric Acid 80% Tech Grade; Ondeo
Nalco Ec2059a; Robins Aqua Ammonia 26' Be; Crompton Hi-point 90 ; Honeywell
Acetone; Valspar Gardena White Base (28-3964) ; Oxychem Caustic Soda Liquid (all
grades); Oxychem Phosphoric Acid 80% Solution ; Ashland Drewfloc 2449 Polymer
;
Ondeo Nalco Ec6026a; Arch Chemical Calcium Hypochlorite Granular ; Ashland
Drewfax 0007 Specialty Surfactant; Ashald Drewplus Ed 750 Foam Control Agent
;
Ashland Amerfloc 492 Polymer ; Ashland Chargepac 55 coagulant; Ashland Drewfloc
2220; Ashland Drewfloc 2465 ; Ashland Drewplus L 140 Foam Control Agent ; Fisher
Ammonium Hydroxide; Royster Clark DAP 18-46-0; Thermodyn Fluorodyn Caulk,
Section D
Pollution Control Facility Description
Oily Water Sewer Vapor Controls: Controls were installed on approximately 1140 oily
water sewer components (catch basins, manholes, hub drains, etc.) throughout the
Refinery. Components were sealed or fitted with p-trap inserts to prevent vapors from
escaping to the atmosphere. The sewer system venting was changed to route vapors from
the sewer to carbon canister systems via vent header piping .
Vapor Control at Waste Water Treatment Plant : Covers were installed on all waste water
treatment plant equipment and vapors were routed to a vapor destruction device
.
Vapor Control Slop Oil Tankage: Controls were installed on Refinery slop oil tanks. Six
tanks were sealed and blanketed with nitrogen . Vapors are routed to the combustor flare
.
The Waste Water Treatment Plant upgrade project included the following items
:
-
Main lift station & main lift pumps
Two API separator trains
Two DNF Units
Two API slop/skim oil collection tanks
Two solids storage tanks for API and DNF solids
Two DNF float tanks
Chemical addition systems for caustic, phosphoric and sulfuric acid, aqueous
ammonia, polymer, and coagulant
DNF effluent sump
Area facilities which include secondary containment for the site, fire protection,
utility and sewer systems and area lighting
.
Installation of a floating roof of the Equalization Tank (79D-63) .

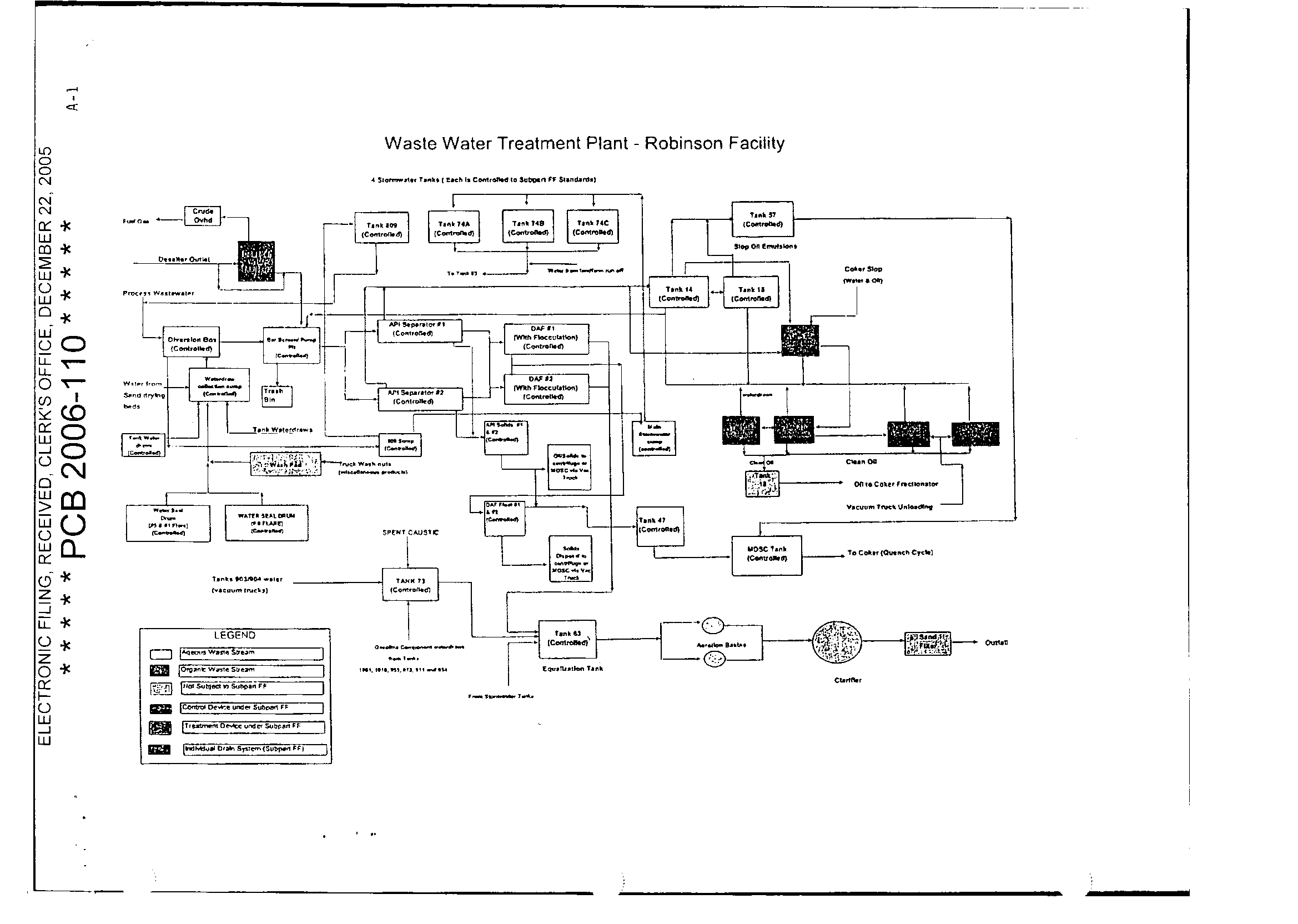

Drawings :
Schematic
Wa ter front
Sane
f,S
bee
Fray„ W. tear
IFw.ary l
oene
M1N
o
oIUpnM-
ICmatbN
a .a
P,.nrr .,
Fnunn,
Iv..aan
1T~+sa
TaWa94L9bnaer
(noon",nw41
ns
LEGEND
O
O
peen, WantSenm
~~
Wm. sa.at
1
Ina$ugmo$~dpanFr
I
I"'-`
e
Wn$ubalFE
I
ITretonttDeatubb9O0pa,FF
I
_
I_
VCMUaIda~$ynn(
I
Tank9F9
ICnuebel

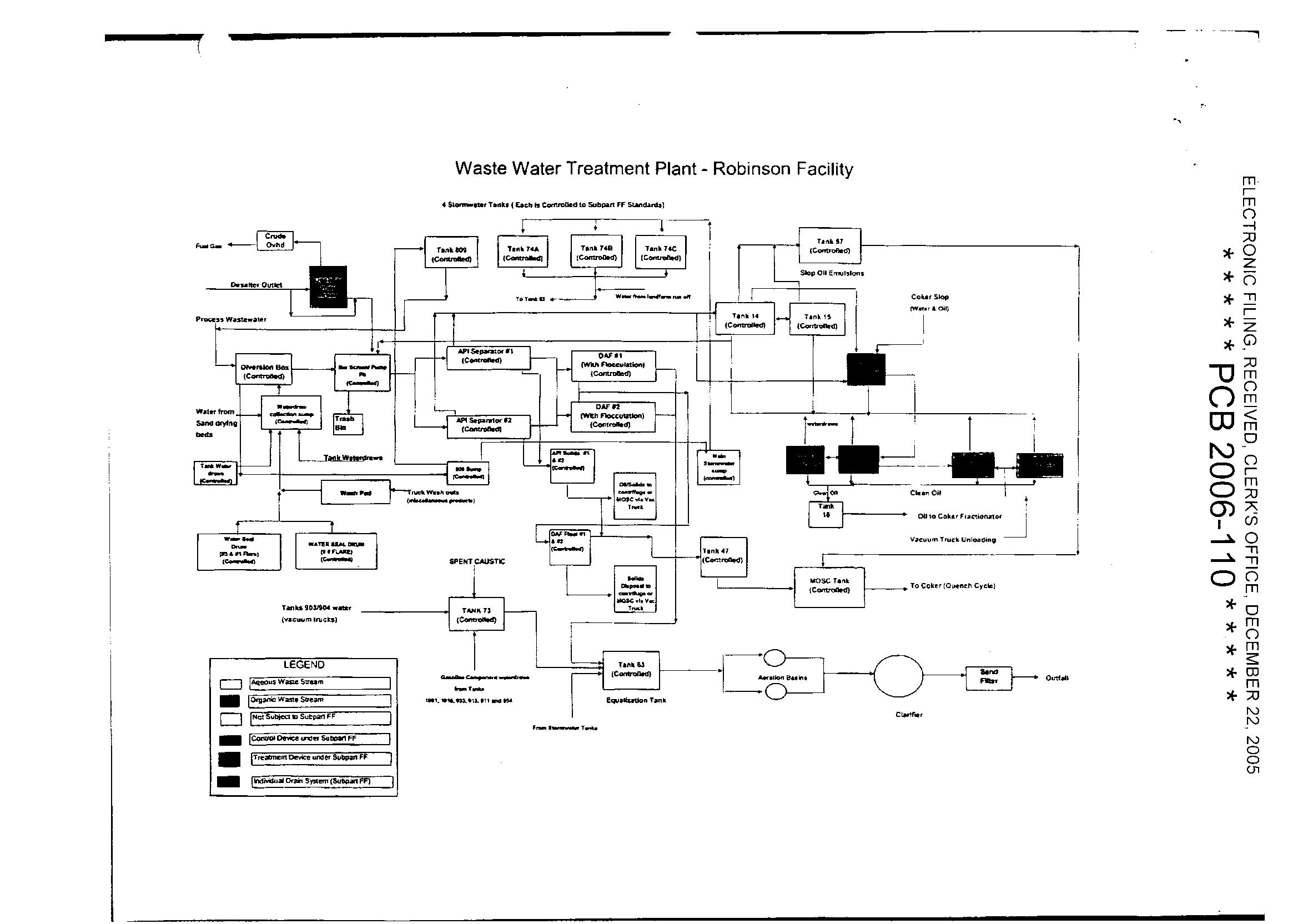

Waste Water Treatment Plant
- Robinson Facility
a $,wraur Tam, (Es,b S COnlsoR,eto Sunyt FF Sweart)
Y,$.pratwal
ICYbrabpl
SFEnTCWST,C
naTo-
1
T.k Y
CemeSb~
IC9neNby
T. .. U.
lCmeoW>)
Daral
(YrtnFb,aWMl
ICavmeal
Darn
TarkTIC
ICananaal
T
nko
C.nm4e)
Tank v
CCmbcdel
$bpCI,Emol,lm,
u,k W
IC
,eel
Tank Y
O
C.Mdl.tf
Mabnbau,
EwawbtTank
_.O
Tank IS
Cun4at.G,
vC
Tank
COmrmeef
1
1
Cob
., Slop
IWm adI
C
r
Char CI .
I
DO to tautFranlavlor
wat,n Tt
,a
uniwam0
TO Cnn ~ouanen Cyebl
Q
ELECTRONIC FILING, RECEIVED, CLERKS OFFICE, DECEMBER 22, 2005
M
a
i
d

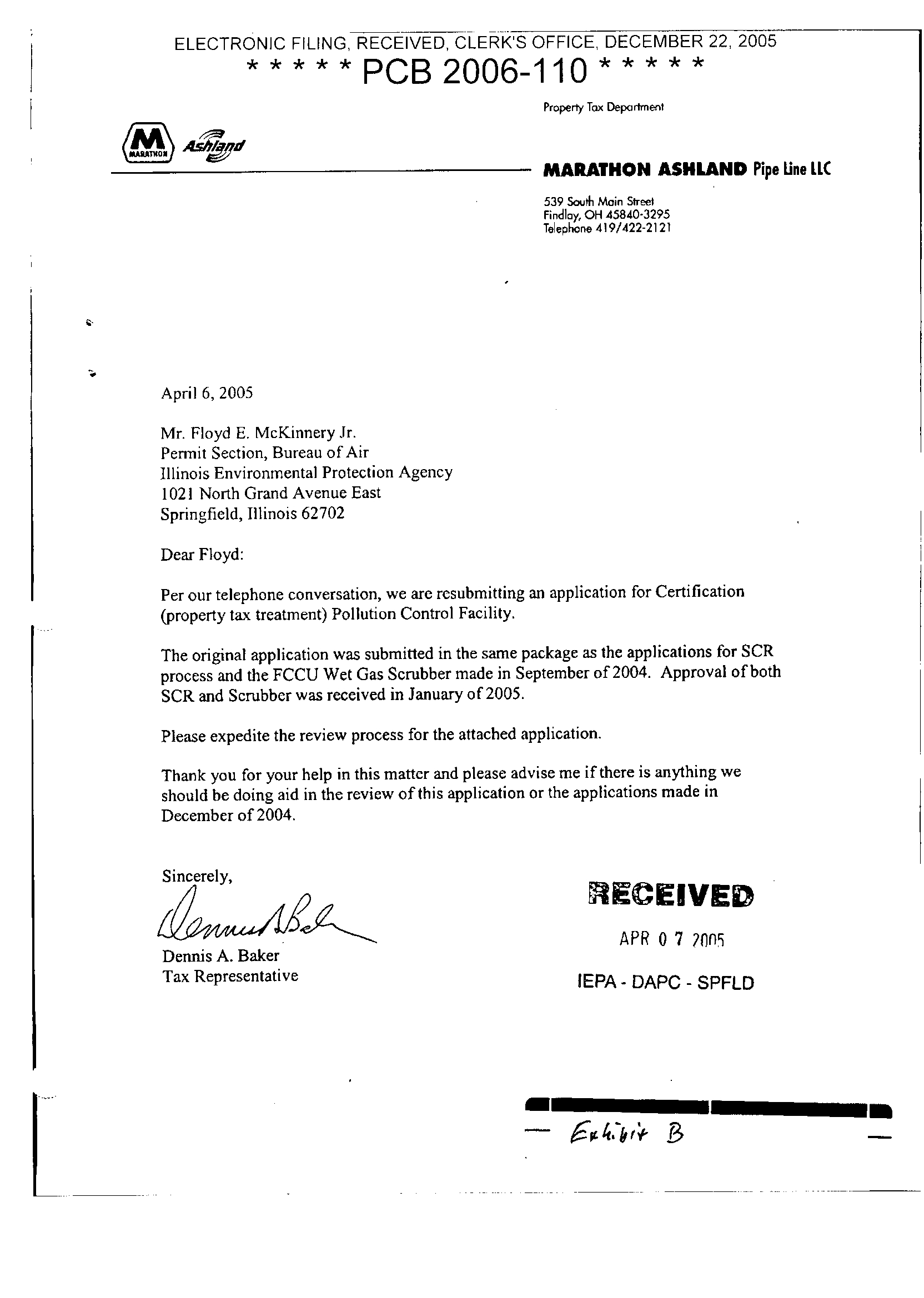

April 6, 2005
Mr. Floyd E. McKinnery Jr
.
Permit Section, Bureau of Air
Illinois Environmental Protection Agency
1021 North Grand Avenue East
Springfield, Illinois 62702
Dear Floyd
:
Per our telephone conversation, we are resubmitting an application for Certification
(property tax treatment) Pollution Control Facility
.
The original application was submitted in the same package as the applications for SCR
process and the FCCU Wet Gas Scrubber made in September of 2004 . Approval of both
SCR and Scrubber was received in January of 2005
.
Please expedite the review process for the attached application
.
Thank you for your help in this matter and please advise me if there is anything we
should be doing aid in the review of this application or the applications made in
December of 2004
.
Dennis A. Baker
Tax Representative
* ** * * PCB 2006-110 * * * * *
Property Tax Department
MARATHON ASHLAND Pipe Line LLC
539 South Main sheet
Findlay, OH 45840-3295
Telephone 419/422-2121
RECEIVED
APR 0 7 7005
LEPA - DAPC - SPFLD
a
~~ k,et 3
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
* * * ** PCB 2006-110 * * * * *

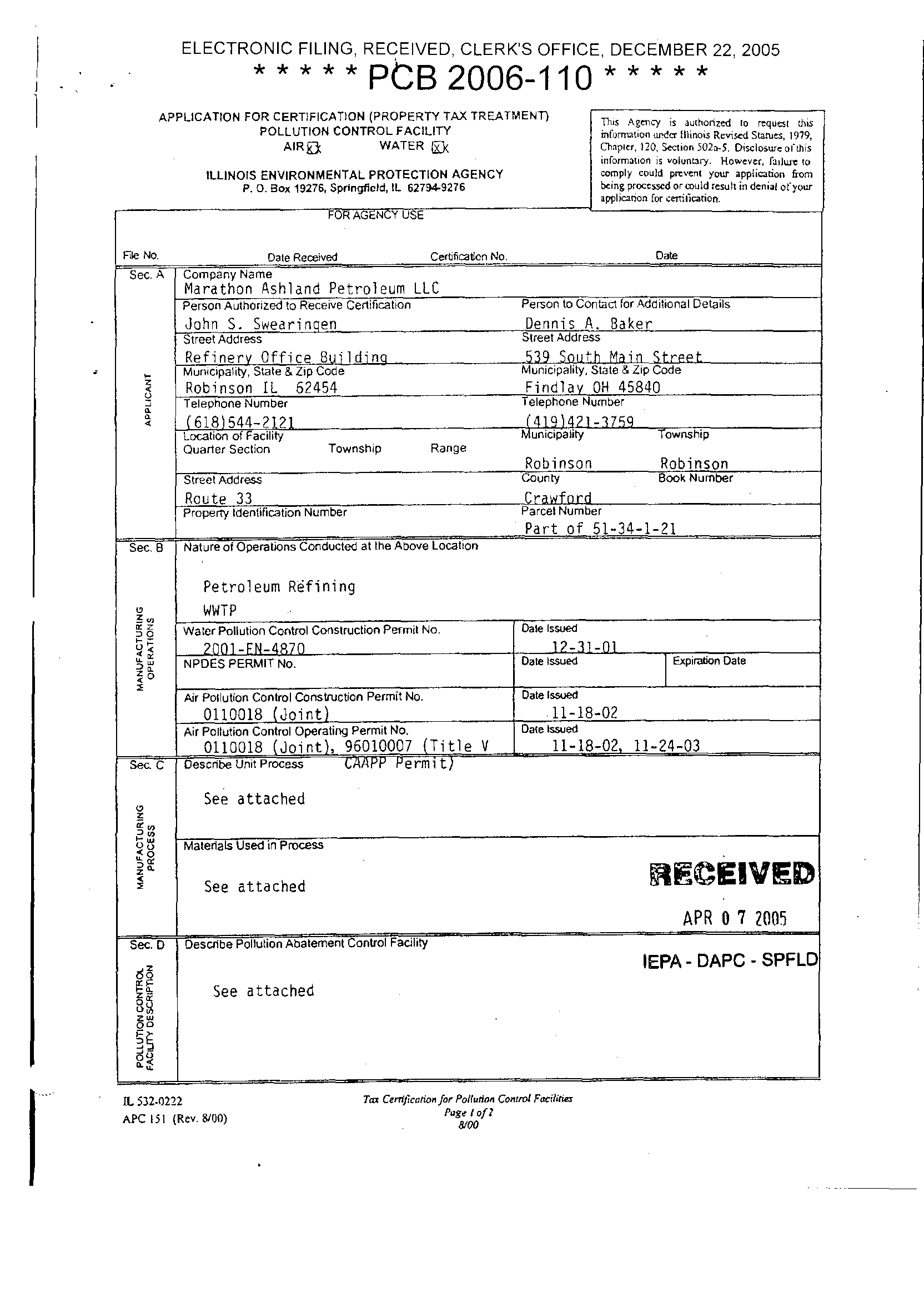

APPLICATION FOR CERTIFICATION (PROPERTY TAX TREATMENT)
POLLUTION CONTROL FACILITY
AIRS
WATER
Ey
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
P. O. Box 19276, Springfield, IL 62794-9276
This
.Agency is authorized to request this
information wider Illinois Revised Statues, 1979,
Chapter, 120, Section 502.5. Disclosure aids
information is voluntary . However, failure to
comply
could prevent
your
application
fiom
being processed or ould resul t
in denial ofyour
application for cetitiaation.
FOR AG N Y USE
File No.
Date Received
Certification No .
Date
Sec. A
Company Name
Marathon Ashland Petroleum LLC
Person Authorized to Receive Certification
Person to Contact for Additional Details
John S .
Swearinqen
Dennis A .
Baker
Street Address
Street Address
Refinery Office Bulldina
539 South Main Street
-
s
Municipality, State & Zip Code
Municipality, State & Zip Code
Robinson
IL
62454
Findlay OH 45840
Telephone Number
Telephone Number
°<
618 544-2
2
4191421-3759
Location of Facility
unicipality
Township
Quarter Section
Township
Range
Robinson
Robinson
Street Address
County
Book Number
Route 33
Crawford
Property Identification Number
Parcel Number
Pa
t of 51-34-1-21
Sec. B
ap
i a
a 0
F
Nature o Operations Conducted at
a
bove oca ion
Petroleum Refining
WWTP
Water Pollution Control Construction Permit No .
fii -
1-a :
S
Date Issued
Date Issued
Sec.C
a
¢w
7y
F to
U U
i o.
a .
•
I
Sec. D
Z-
0
oa
Descnbe Pollution Abatement Control Facility
See attached
IEPA - DAPC - SPFLD
If. 552-0222
Tao Cenification for Pollution Control
Facilirier
APC 151 (Rev. 8/00)
Page r
Of
7
I
8/00
ELECTRONIC FILING, RECEIVED, CLERKS OFFICE, DECEMBER 22,2005
*****PCB2006-110*****
1
(1) Nature of Contaminants or Pollutants
Tax Certification for Pollution Contra! Facilities
Pnge 2
oft
&00
Material Retai
J, Ca
ur
r
ecov red
Contaminant or Pollutant
DESCRIPTION
DISPOSAL OR USE
f
(2) Point(s) of Waste Water Discharge
i
°u
Plans and Specifications Attached
Yes
No
(3)
Are contaminants (or residues) collected by the control facility?
Yes
No
(4)
Date installation completed
status of installation on date of application
(5)
a
.
FAIR CASH VALUE IF CONSIDERED REAL PROPERTY :
$ 20, 902,623
0 .
NET SALVAGE VALUE IF CONSIDERED REAL PROPERTY .
$
PRODUCTIVE GROSS ANNUAL INCOME OF CONTROL FACILITY.
5
0
a .
PRODUCTIVE NET ANNUAL INCOME OF CONTROL FACILITY :
$
0
e
.
PERCENTAGE CONTROL FACILITY BEARS TO WHOLE FACILITY VALUE
:
%
2.255
Sec. F
~
The following information is submitted in accordance with the Illinois Property Tax
knowledg
, is true and correct. The facilities claimed herein are pollution control facilities'
Illinois P
•
ery Tax Code
/11
Code, as amended, and to the best of my
as defined in Section 11-10 of the
3755'
Title
S goature
Title
_
Sec G
INS RUCTIONS FOR CO PILING AND FILING APPLICATION
General Separate applications must be completed for each control facility claimed . Do not mix types (water and
air) .
Where both air and
water operations are related, file two applications .
If anacmments are needed, record them consecutively on an index sheet
.
Sec
. A
I
Information
refers
to applicant as listed in the tax records and the person robe contacted for further details or for inspection of
facilities. Define ldliry location by street address or legal description . A plat map location is required for facilities located
outside of municipal boundaries . The property identification number is required .
Sec . B
.J
sell
explanatory,
Submit copies of all permits issued by local pollution control agencies-
(e .g . MSO Construction Permit)
Sec. C
I
Refers to manufacuhng processes or materials on which pollution control
facility is used
.
Sec, 0
f
Narrative desciption of the pollution control faddy, indicating coal its
primary purpose is to eliminate, prevent or reduce pollution .
Scale me type of control facility . State permit number, date, and agency issuing permit. A narrative description and a process
flow diagram oescrrbing the ootlutirn control facility
.
Include a fisting of each major piece of equipment included in the claimed
fair cash value to real property . Include an eve_ analysis of the influent and
effluent of the control facility stating the
collection efficiency .
Sec. E
List air contaminants. or water pollution substances released as effluents to the manufacturing processes. List also the final
disposal of any contaminants removed from me manufacturing processes
.
Item (1) - Refers to pollutants and contaminants removed from me process by the pollution Control faolity
.
Item (2) - Refers to
water
pollution but can apply to water.anted wastes from air pollution control facilities. Submit drawings.
whiol dearly show (a) point(s) of discharge to receiving steam, and (b) Sewers
and process piping to and from the control
facility .
Item (3) - If me collected contaminants are disposed of other
than
as wastes, state the disposition of the materials, and me value
in
dollars reclaimed by sale or reuse of the cofectc substances.
State me cost of reclamation and related expense .
Item (n)- Sure me date which me pollution control facility was first placed in service and operated. If not, explain
.
Item (S)- This information is essential to the certification and assessment actions . This accounting dam must be completed to
activate protect review polo to certficadon by this Agency .
Se,
F
Self-explanatory. Signature must be a corporate authorized signature
.
Submit to
:
Attention :
Attention :
Winos EPA
Thomas McSwiggin
Donald E. Si mon
P .0 Box 19276
Permit Section
Permit Section
Sphngfielo. IL 62794-9276
Division of Water Pollution Control
Division of 4-r Pollution Control
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB2006-110*****
i
Section C
Describe Unit Process :
The new covered waste water treating plant is located a block east and north of the Crude
Unit . The treatment plant is covered to prevent hydrocarbon vapors out of the air . The
lighter than water materials are skimmed from the top and the heavier than water
materials are pumped off the bottom in the API Traps. In the DNFs the suspended
particles are formed together chemically and floated to the top as floc where they are
skimmed. The skimmed waste is then treated and taken off site
.
Oily wastewater from refinery processes is directed to the Main Lift Station . Storm water
can also be directed to the Main Lift Station in the event of an overflow of storm water
facilities or should it need to be processed in the primary wastewater treatment facilities
.
From the Main Lift Station, oily wastewater/storm water is pumped to the inlet of two
parallel API Separators, which are covered, nitrogen-blanketed, and vented to the 84F-7
Flare. Oil is skimmed off the top of the API Separators and sent to a series of slop oil
tanks; recovered slop oil is returned to refinery processes . Solids from the bottom of the
API Separators are pumped to storage tanks
.
After the API Separators, wastewater is directed to two parallel Dissolved Nitrogen
Floatation (DNF) units, which are also covered, nitrogen-blanketed and vented to the
84F-7 Flare. DNF solids and DNF float are pumped to the storage tanks. From the DNF
units, waste water is pumped to the DNF Effluent Tank, 79D-125, and then to Tank 79D-
63, which serves as an equalization tank for the secondary treatment facilities . Secondary
treatment includes two activated sludge tanks for biological treatment, clarification, and
filtering .
API or DNF solids can be further processed to recover oil . The solids are sent through a
centrifuge, where oil is recovered, and then through a low temperature thermal desorption
unit to reduce the sludge volume
.
New construction to WWTP process included :
1. New main lift station with secondary containment and cover with vapor control to
pump the refinery wastewater from the existing Diversion Box/Splitter Box to the
two new trains of API Oil/Water Separator and Dissolved Nitrogen Flotation
(DNF) .
2. New above ground parallel API separator trains with provisions for vapor
collection. The effluent from the main lift station is diverted to the new API
units .
3. Two new larger above ground parallel DNF units with provisions for vapor
collection. The effluent from the new API separator is sent to the new DNF units
.
4. Dedicated slop oil collection tanks for each API. The slop oil will be pumped
from these tanks to the existing slop oil collection tanks .
5. Two solids storage tanks for the API and/or DNF solids
.
6. Two DNF Float storage tanks .
7. Pumps and piping for wastewater, slop oil, and solids transfer
.
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
*****PCB'2006-110*****
S .
Secondary containment for the bVWTP area, area paving, fire protection facilities
and area lighting
.
9. New operator's shelter with controls and new motor control center
.
10. Nitrogen blanketing on selected units to maintain a non-explosive environment
under the vapor emission control covers
.
11. New chemical feed facility for caustic, sulfuric acid, ammonia, phosphoric acid,
polymer (flocculant), and coagulant
.
12. Floating roof cover for existing Equalization Tank 79D-63 to control vapor
emissions .
13. Cover and vapor controls for existing Diversion Box, 809 Sump and API Splitter
Box
.
14. Activated carbon systems to control emissions from Main Lift Station, sewers,
and other remotely located systems such as the stormwater sump
.
Section C
Materials used in process :
Caustic, sulfuric acid, ammonia, phosphoric acid, polymer (flocculant), and coagulant
Section D
Pollution Control Facility Description
Oily wastewater from refinery processes is directed to the Main Lift Station . Storm water
can also be directed to the Main Lift Station in the event of an overflow of storm water
facilities or should it need to be processed in the primary wastewater treatment facilities
.
From the Main Lift Station, oily wastewater/storm water is pumped to the inlet of two
parallel API Separators, which are covered, nitrogen-blanketed, and vented to the 84F-7
Flare. Oil is skimmed off the top of the API Separators and sent to a series of slop oil
tanks; recovered stop oil is returned to refinery processes . Solids from the bottom of the
API Separators are pumped to storage tanks
.
After the API Separators, wastewater is directed to two parallel Dissolved Nitrogen
Floatation (DNF) units, which are also covered, nitrogen-blanketed and vented to the
84F-7 Flare. DNF solids and DNF float are pumped to the storage tanks . From the DNF
units, waste water is pumped to the DNF Effluent Tank, 79D-125, and then to Tank 79D-
63, which serves as an equalization tank for the secondary treatment facilities . Secondary
treatment includes two activated sludge tanks for biological treatment, clarification, and
filtering
.
I
API or DNF solids can be further processed to recover oil . The solids are sent through a
centrifuge, where oil is recovered, and then through a low temperature thermal desorption
unit to reduce the sludge volume .
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
* ** * * PCB 2006-110 * ** * *
Section E
(l) Nature of Contaminants or Pollutants
:
Hydrocarbon vapors
Contaminant or Pollutant : Hydrocarbon vapors (VOCs)
Material retained, captured or recovered (descnption) : Hydrocarbon vapors are
prevented from reaching the atmosphere due to the new covered waste water
treatment plant
.
(2) N/A
Plans and specifications attached
YES
(3) Are contaminants (or residues) collected by the control facility YES
(4) Installation completed
: October 2002 status of installation on date of application
:
100%
(5) FOR TAX DEPARTMENT
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005

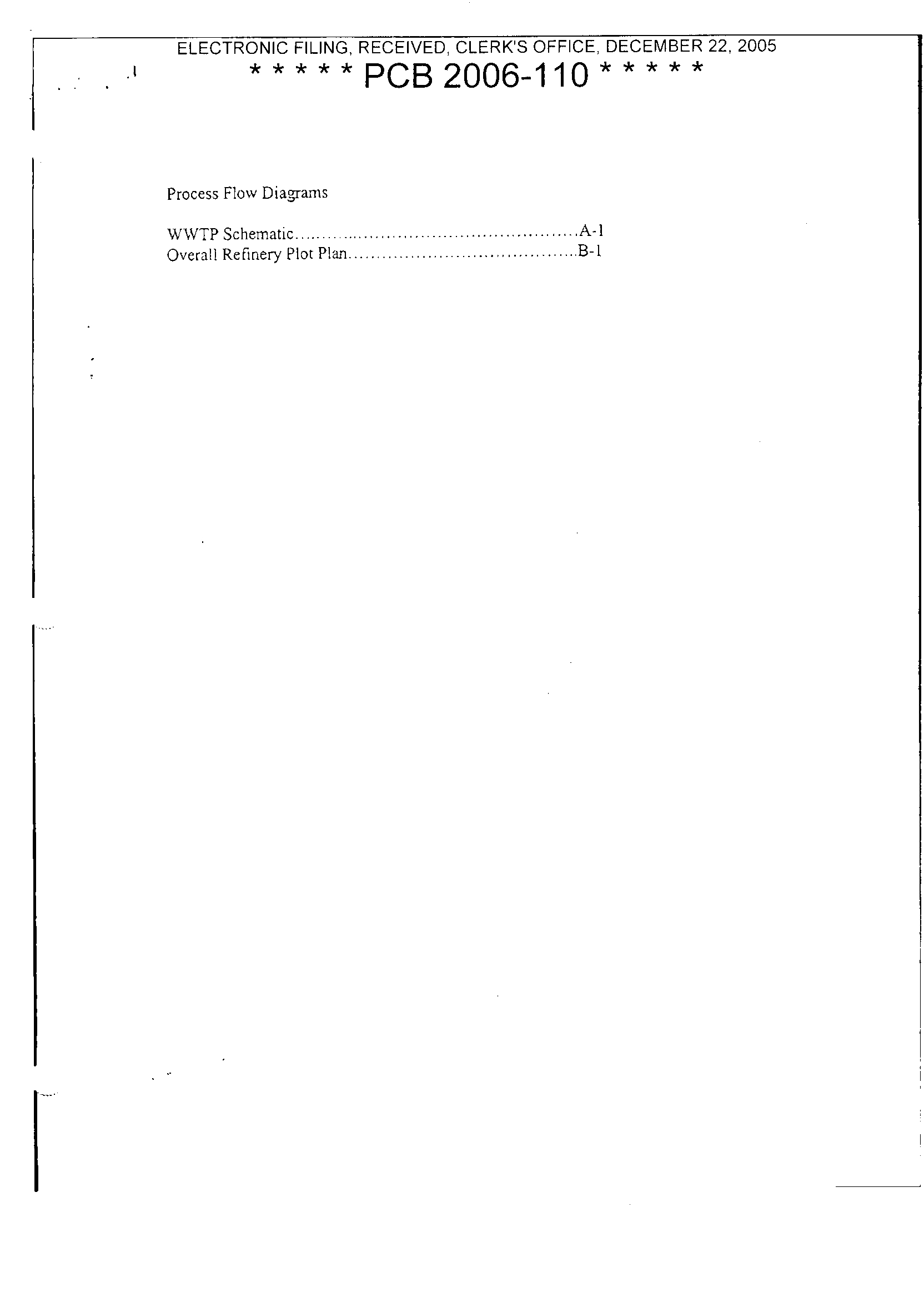

Process Flow Diagrams
WWTP Schematic
A-1

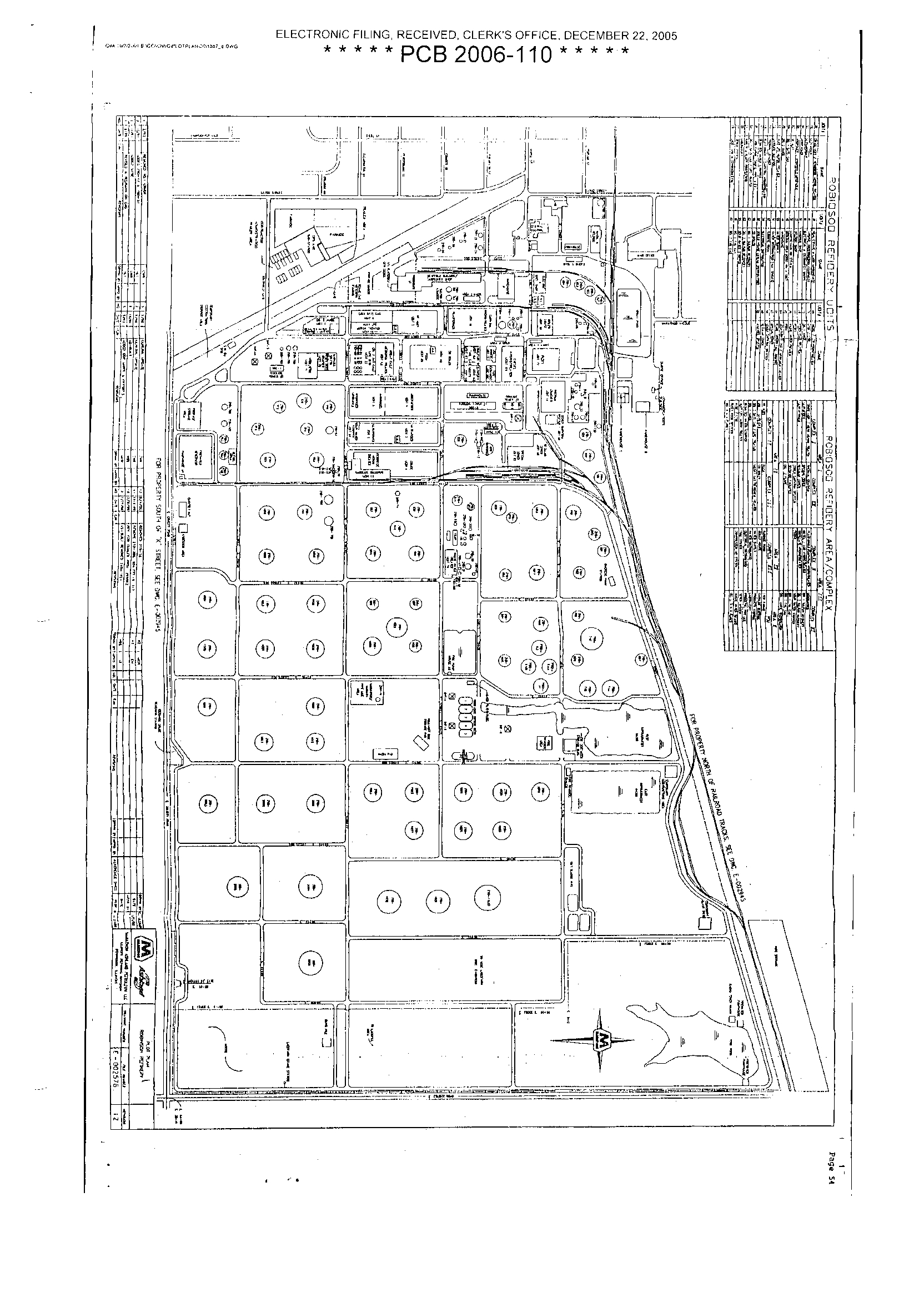

Overall Refinery Plot Plan
B-i
* * * * * PCB 2006-110 * * ***
U)0
0
N
N
N
w
CO
-k
w
U
w
•
O
LL
~~
LL
•
r
N
Z
•
k
U
Z
0~
C)
w
J
w
L_
t9 w~Id0
I
¢o.wot.m
.A 9.wdtd
IS
somtot.m
n
Ico .. ..t.m
1
.8
co.oolwm
IC
tot
.dtLn
e.C
'CLnNE)
OK.I
IMttnFb 00t*d)
nl
ICOd..MT
I= u
/CwtrebOj
r
T .. . .4
ICO .I.. ..q
Cwttw .dl
Tu\ T
cwt
m . o one
.
n.u .
ICatwI.n
YOIC r . ..
IC.autMU)
CI.. Oo
OII,.Co\afnwn.nw
C
~.~
.td5uw.dn5u.pnif
M
LEGEND
I ..m?n won. So-
I
IOgnt w.ne S.-
I
ICadw
De'4 otol,
. SW.e.
fi
II,t trtfoot..o.ed
S.of..ff
IMFV~ .IOt.hSNe^ `ISUOI..
frI
I
Waste Water Treatment Plant - Robinson Facility
I
.o...n .. n . .,
l ueP
. I. ew ..ott
.d to Shoot
ff
y ..mro.t
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22 .2005
* * * * * PCB 2006-110 * * * * *
ELECTRONIC FILING, RECEIVED, CLERK'S OFFICE, DECEMBER 22, 2005
* * * * * PCB 2006-110 * * * * *
ILLINOIS ENVIRONMENTAL PROTECTION AGENCY
P .O . Box
19506, SIRINCwID,
ImNois
62794-9506
RENEE CIPRIANO, DIRECTOR
Memorandum
Technical Recommendation for Tax Certification Approval
Date :
September 20, 2005
To :
Robb Layman
From :
Don Sutton
.)
Subject :
Marathon Ashland Petroleum LLC TC-04-30-12G & TC-05-04-07
This Agency received a request on December 30, 2004 from Marathon Ashland Petroleum LLC for an
Illinois EPA recommendation regarding tax certification of air pollution control facilities pursuant to 35 III
.
Adm. Code 125.204. I offer the following recommendation
.
The air pollution control facilities in this request include the following
:
Wastewater Treatment Plant and Benzene Neshap's Air Controls whose
primary purpose is to reduce vapor emissions from the oily sewer system . The units that
reduce vapor emissions are the Oily Water Sewer Vapor Controls, Vapor Control at
wastewater treatment plant, and Vapor Control Slop Oil Tankage . Because the primary
purpose of these units are to reduce or eliminate air pollution, it is certified as a pollution
control facility
.
This facility is located at 100 Marathon Avenue, Robinson
The property identification number is Part of 51-34-1-21
Based on the information included in this submittal, it is my engineering Judgement that
the proposed facility may be considered "Pollution Control Facilities" under 35 IAC
125.200(a), with the primary purpose of eliminating, preventing, or reducing air pollution,
or as otherwise provided in this section, and therefore eligible for tax certification from
the Illinois Pollution Control Board. Therefore, it is my recommendation that the Board
issue the requested tax Certification for this facility
.
ROD R. BLAGOJEVIU~, GOVERNOR
PRINTED ON RECYCLED PAPER
