TITLE 35: ENVIRONMENTAL PROTECTION
SUBTITLE F: PUBLIC WATER SUPPLIES
CHAPTER I: POLLUTION CONTROL BOARD

PART 616
NEW ACTIVITIES IN A SETBACK ZONE OR
REGULATED RECHARGE AREA

SUBPART A: GENERAL

Section
616.101 Purpose
616.102 Definitions
616.104 Exceptions to Prohibitions
616.105 General Exceptions

SUBPART B: GROUNDWATER MONITORING REQUIREMENTS

Section
616.201 Applicability
616.202 Compliance Period
616.203 Compliance With Groundwater Standards
616.204 Groundwater Monitoring System
616.205 Groundwater Monitoring Program
616.206 Reporting
616.207 Determining Background Values and Maximum Allowable Results


("MARs")
616.208 Continued Sampling
616.209 Preventive Notification and Preventive Response
616.210 Corrective Action Program
616.211 Alternative Corrective Action Demonstration

SUBPART C: GENERAL CLOSURE AND POST-CLOSURE REQUIREMENTS

Section
616.301 Applicability
616.302 Closure Performance Standard
616.303 Certification of Closure
616.304 Survey Plat
616.305 Post-Closure Notice for Waste Disposal Units
616.306 Certification of Completion of Post-Closure Care
616.307 Post-Closure Care Period


SUBPART D: ON-SITE LANDFILLS


Section
616.401 Applicability
616.402 Prohibitions

SUBPART E: ON-SITE LAND TREATMENT UNITS

Section
616.421 Applicability
616.422 Prohibitions
616.423 Groundwater Monitoring
616.424 Design and Operating Requirements
616.425 Closure and Post-Closure Care

SUBPART F: ON-SITE SURFACE IMPOUNDMENTS

Section
616.441 Applicability
616.442 Prohibitions
616.443 Groundwater Monitoring
616.444 Design Requirements
616.445 Inspection Requirements
616.446 Operating Requirements
616.447 Closure and Post-Closure Care

SUBPART G: ON-SITE WASTE PILES

Section
616.461 Applicability
616.462 Prohibitions
616.463 Design and Operating Requirements
616.464 Closure

SUBPART H: UNDERGROUND STORAGE TANKS

Section
616.501 Applicability
616.502 Design and Operating Requirements


SUBPART I: PESTICIDE STORAGE AND HANDLING UNITS

Section
616.601 Applicability
616.602 Prohibitions
616.603 Groundwater Monitoring
616.604 Design and Operating Requirements

616.605 Closure and Post-Closure Care

SUBPART J: FERTILIZER STORAGE AND HANDLING UNITS

Section
616.621 Applicability
616.622 Prohibitions
616.623 Groundwater Monitoring
616.624 Design and Operating Requirements
616.625 Closure and Post-Closure Care

SUBPART K: ROAD OIL STORAGE AND HANDLING UNITS

Section
616.701 Applicability
616.702 Prohibitions
616.703 Groundwater Monitoring
616.704 Design and Operating Requirements for Above-Ground Storage Tanks
616.705 Closure

SUBPART L: DE-ICING AGENT STORAGE AND HANDLING UNITS

Section
616.721 Applicability
616.722 Prohibitions
616.723 Groundwater Monitoring
616.724 Design and Operating Requirements for Indoor Storage Facilities
616.725 Closure

AUTHORITY: Implementing Sections 5, 14.4, 21, and 22, and authorized by Section 27
of the Environmental Protection Act [415 ILCS 5/5, 14.4, 21, 22, 27].

SOURCE: Adopted in R89-5 at 16 Ill. Reg. 1592, effective January 10, 1992; amended
in R89-14(C) at 16 Ill. Reg. 14676, effective September 11, 1992; amended in R92-20 at
17 Ill. Reg. 1878, effective January 28, 1993; amended in R96-18 at 21 Ill. Reg.6543,
effective May 8, 1997.

SUBPART A: GENERAL

Section 616.101 Purpose

This Part prescribes requirements and standards for the protection of groundwater for
certain types of new facilities or units located wholly or partially within a setback zone
regulated by the Act or within a regulated recharge area as delineated pursuant to Section
17.4 of the Illinois Environmental Protection Act (Act) [415 ILCS 5].


(Source: Amended at 21 Ill. Reg.6543, effective May 8, 1997.)

Section 616.102 Definitions

Except as stated in this Section, and unless a different meaning of a word or term is clear
from the context, the definitions of words or terms in this Part shall be the same as those
used in 35 Ill. Adm. Code 615.102, the Act, or the Illinois Groundwater Protection Act
[415 ILCS 55].

"NEW POTENTIAL PRIMARY SOURCE" MEANS:

A POTENTIAL PRIMARY SOURCE WHICH IS NOT IN
EXISTENCE OR FOR WHICH CONSTRUCTION HAS NOT
COMMENCED AT ITS LOCATION AS OF JANUARY 1, 1988;
OR

A POTENTIAL PRIMARY SOURCE WHICH EXPANDS
LATERALLY BEYOND THE CURRENTLY PERMITTED
BOUNDARY OR, IF THE PRIMARY SOURCE IS NOT
PERMITTED, THE BOUNDARY IN EXISTENCE AS OF
JANUARY 1, 1988; OR

A POTENTIAL PRIMARY SOURCE WHICH IS PART OF A
FACILITY THAT UNDERGOES MAJOR RECONSTRUCTION.
SUCH RECONSTRUCTION SHALL BE DEEMED TO HAVE
TAKEN PLACE WHERE THE FIXED CAPITAL COST OF THE
NEW COMPONENTS CONSTRUCTED WITHIN A 2-YEAR
PERIOD EXCEED 50% OF THE FIXED CAPITAL COST OF A
COMPARABLE ENTIRELY NEW FACILITY.

(Section 3.59 of the Act)

"NEW POTENTIAL ROUTE" MEANS:

A POTENTIAL ROUTE WHICH IS NOT IN EXISTENCE OR
FOR WHICH CONSTRUCTION HAS NOT COMMENCED AT
ITS LOCATION AS OF JANUARY 1, 1988, OR

A POTENTIAL ROUTE WHICH EXPANDS LATERALLY
BEYOND THE CURRENTLY PERMITTED BOUNDARY OR,
IF THE POTENTIAL ROUTE IS NOT PERMITTED, THE
BOUNDARY IN EXISTENCE AS OF JANUARY 1, 1988.

(Section 3.58 of the Act)

"NEW POTENTIAL SECONDARY SOURCE" MEANS:


A POTENTIAL SECONDARY SOURCE WHICH IS NOT IN
EXISTENCE OR FOR WHICH CONSTRUCTION HAS NOT
COMMENCED AT ITS LOCATION AS OF JULY 1, 1988; OR

A POTENTIAL SECONDARY SOURCE WHICH EXPANDS
LATERALLY BEYOND THE CURRENTLY PERMITTED
BOUNDARY OR, IF THE SECONDARY SOURCE IS NOT
PERMITTED, THE BOUNDARY IN EXISTENCE AS OF JULY
1, 1988, OTHER THAN AN EXPANSION FOR HANDLING OF
LIVESTOCK WASTE OR FOR TREATING DOMESTIC
WASTEWATERS; OR

A POTENTIAL SECONDARY SOURCE WHICH IS PART OF
A FACILITY THAT UNDERGOES MAJOR
RECONSTRUCTION. SUCH RECONSTRUCTION SHALL BE
DEEMED TO HAVE TAKEN PLACE WHERE THE FIXED
CAPITAL COST OF THE NEW COMPONENTS
CONSTRUCTED WITHIN A 2-YEAR PERIOD EXCEED 50%
OF THE FIXED CAPITAL COST OF A COMPARABLE
ENTIRELY NEW FACILITY.

(Section 3.60 of the Act)

"POTENTIAL PRIMARY SOURCE" MEANS ANY UNIT AT A
FACILITY OR SITE NOT CURRENTLY SUBJECT TO A REMOVAL
OR REMEDIAL ACTION WHICH:

IS UTILIZED FOR THE TREATMENT, STORAGE, OR
DISPOSAL OF ANY HAZARDOUS OR SPECIAL WASTE
NOT GENERATED AT THE SITE; OR

IS UTILIZED FOR THE DISPOSAL OF MUNICIPAL WASTE
NOT GENERATED AT THE SITE, OTHER THAN
LANDSCAPE WASTE AND CONSTRUCTION AND
DEMOLITION DEBRIS; OR

IS UTILIZED FOR THE LANDFILLING, LAND TREATING,
SURFACE IMPOUNDING OR PILING OF ANY HAZARDOUS
OR SPECIAL WASTE THAT IS GENERATED ON THE SITE
OR AT OTHER SITES OWNED, CONTROLLED OR
OPERATED BY THE SAME PERSON; OR

STORES OR ACCUMULATES AT ANY TIME MORE THAN
75,000 POUNDS ABOVE GROUND, OR MORE THAN 7,500

POUNDS BELOW GROUND, OF ANY HAZARDOUS
SUBSTANCES.

(Section 3.59 of the Act)

"POTENTIAL ROUTE" MEANS ABANDONED AND IMPROPERLY
PLUGGED WELLS OF ALL KINDS, DRAINAGE WELLS, ALL
INJECTION WELLS, INCLUDING CLOSED LOOP HEAT PUMP
WELLS, AND ANY EXCAVATION FOR THE DISCOVERY,
DEVELOPMENT OR PRODUCTION OF STONE, SAND OR
GRAVEL. (Section 3.58 of the Act)

"POTENTIAL SECONDARY SOURCE" MEANS ANY UNIT AT A
FACILITY OR A SITE NOT CURRENTLY SUBJECT TO A
REMOVAL OR REMEDIAL ACTION, OTHER THAN A POTENTIAL
PRIMARY SOURCE, WHICH:

IS UTILIZED FOR THE LANDFILLING, LAND TREATING,
OR SURFACE IMPOUNDING OF WASTE THAT IS
GENERATED ON THE SITE OR AT OTHER SITES OWNED,
CONTROLLED OR OPERATED BY THE SAME PERSON,
OTHER THAN LIVESTOCK AND LANDSCAPE WASTE,
AND CONSTRUCTION AND DEMOLITION DEBRIS; OR

STORES OR ACCUMULATES AT ANY TIME MORE THAN
25,000 BUT NOT MORE THAN 75,000 POUNDS ABOVE
GROUND, OR MORE THAN 2,500 BUT NOT MORE THAN
7,500 POUNDS BELOW GROUND, OF ANY HAZARDOUS
SUBSTANCES; OR

STORES OR ACCUMULATES AT ANY TIME MORE THAN
25,000 GALLONS ABOVE GROUND, OR MORE THAN 500
GALLONS BELOW GROUND, OF PETROLEUM,
INCLUDING CRUDE OIL OR ANY FRACTION THEREOF
WHICH IS NOT OTHERWISE SPECIFICALLY LISTED OR
DESIGNATED AS A HAZARDOUS SUBSTANCE; OR

STORES OR ACCUMULATES PESTICIDES, FERTILIZERS,
OR ROAD OILS FOR PURPOSES OF COMMERCIAL
APPLICATION OR FOR DISTRIBUTION TO RETAIL SALES
OUTLETS; OR

STORES OR ACCUMULATES AT ANY TIME MORE THAN
50,000 POUNDS OF ANY DE-ICING AGENT; OR


IS UTILIZED FOR HANDLING LIVESTOCK WASTE OR FOR
TREATING DOMESTIC WASTEWATERS OTHER THAN
PRIVATE SEWAGE DISPOSAL SYSTEMS AS DEFINED IN
THE PRIVATE SEWAGE DISPOSAL LICENSING ACT [225
ILCS 225]

(Section 3.60 of the Act)

(Source: Amended at 21 Ill. Reg.6543, effective May 8, 1997.)

Section 616.104 Exceptions to Prohibitions

a) THE OWNER OF A NEW POTENTIAL PRIMARY SOURCE OR A
POTENTIAL SECONDARY SOURCE MAY SECURE A WAIVER
FROM THE prohibitions specified in Sections 616.402(a), 616.422(a),
616.442, 616.462(a), 616.602, 616.622, 616.702 or 616.722(a) against
construction or operation within the setback zone FOR A POTABLE
WATER SUPPLY WELL OTHER THAN A COMMUNITY WATER
SUPPLY. A WRITTEN REQUEST FOR A WAIVER SHALL BE
MADE TO THE OWNER OF THE WATER WELL AND THE
AGENCY. SUCH REQUEST SHALL IDENTIFY THE
NEW OR PROPOSED POTENTIAL SOURCE, SHALL GENERALLY
DESCRIBE THE POSSIBLE EFFECT OF SUCH POTENTIAL
SOURCE UPON THE WATER WELL AND ANY APPLICABLE
TECHNOLOGY-BASED CONTROL WHICH WILL BE UTILIZED TO
MINIMIZE THE POTENTIAL FOR CONTAMINATION, AND SHALL
STATE WHETHER, AND UNDER WHAT CONDITIONS, THE
REQUESTOR WILL PROVIDE AN ALTERNATIVE POTABLE
WATER SUPPLY. WAIVER MAY BE GRANTED BY THE OWNER
OF THE WATER WELL NO LESS THAN 90 DAYS AFTER RECEIPT
UNLESS PRIOR TO SUCH TIME THE AGENCY
NOTIFIES THE WELL OWNER THAT IT DOES NOT CONCUR
WITH THE REQUEST. (Section 14.2(b) of the Act)

b) THE AGENCY SHALL NOT CONCUR WITH ANY SUCH REQUEST
WHICH FAILS TO ACCURATELY DESCRIBE REASONABLY
FORESEEABLE EFFECTS OF THE POTENTIAL SOURCE OR
POTENTIAL ROUTE UPON THE WATER WELL OR ANY
APPLICABLE TECHNOLOGY-BASED CONTROLS. SUCH
NOTIFICATION BY THE AGENCY SHALL BE IN WRITING, AND
SHALL INCLUDE A STATEMENT OF REASONS FOR THE
NONCONCURRENCE. WAIVER OF THE MINIMUM SETBACK
ZONE SHALL EXTINGUISH THE WATER WELL OWNER'S RIGHTS
UNDER SECTION 6b OF THE ILLINOIS WATER WELL
CONSTRUCTION CODE BUT SHALL NOT PRECLUDE
ENFORCEMENT OF ANY LAW REGARDING WATER POLLUTION.

IF THE OWNER OF THE WATER WELL HAS NOT GRANTED A
WAIVER WITHIN 120 DAYS AFTER RECEIPT OF THE REQUEST
OR THE AGENCY HAS NOTIFIED THE OWNER THAT IT DOES
NOT CONCUR WITH THE REQUEST, THE OWNER OF A
POTENTIAL SOURCE OR POTENTIAL ROUTE MAY FILE A
PETITION FOR AN EXCEPTION WITH THE BOARD AND THE
AGENCY PURSUANT TO subsection (b) OF THIS SECTION. (Section
14.2(b) of the Act)

c) NO WAIVER UNDER THIS SECTION IS REQUIRED WHERE THE
POTABLE WATER SUPPLY WELL IS PART OF A PRIVATE WATER
SYSTEM AS DEFINED IN THE ILLINOIS GROUNDWATER
PROTECTION ACT, AND THE OWNER OF SUCH WELL WILL
ALSO BE THE OWNER OF A NEW POTENTIAL SECONDARY
SOURCE OR A POTENTIAL ROUTE. IN SUCH INSTANCES, A
PROHIBITION OF 75 FEET SHALL APPLY AND THE OWNER
SHALL NOTIFY THE AGENCY OF THE INTENDED ACTION SO
THAT THE AGENCY MAY PROVIDE INFORMATION REGARDING
THE POTENTIAL HAZARDS ASSOCIATED WITH LOCATION OF A
POTENTIAL SECONDARY SOURCE OR POTENTIAL ROUTE IN
CLOSE PROXIMITY TO A POTABLE WATER SUPPLY WELL.
(Section 14.2(b) of the Act)

d) THE BOARD MAY GRANT AN EXCEPTION FROM THE SETBACK
REQUIREMENTS OF THIS SECTION AND SECTION 14.3 TO THE
OWNER OF A NEW POTENTIAL PRIMARY SOURCE OTHER THAN
LANDFILLING OR LAND TREATING, OR A NEW POTENTIAL
SECONDARY SOURCE. THE OWNER SEEKING AN EXCEPTION
WITH RESPECT TO A COMMUNITY WATER SUPPLY WELL
SHALL FILE A PETITION WITH THE BOARD AND THE AGENCY.
THE OWNER SEEKING AN EXCEPTION WITH RESPECT TO A
POTABLE WATER SUPPLY WELL SHALL FILE A PETITION WITH
THE BOARD AND THE AGENCY, AND SET FORTH THEREIN THE
CIRCUMSTANCES UNDER WHICH A WAIVER HAS BEEN
SOUGHT BUT NOT OBTAINED PURSUANT TO subsection (a) OF
THIS SECTION. A PETITION SHALL BE ACCOMPANIED BY
PROOF THAT THE OWNER OF EACH POTABLE WATER SUPPLY
WELL FOR WHICH SETBACK REQUIREMENTS WOULD BE
AFFECTED BY THE REQUESTED EXCEPTION HAS BEEN
NOTIFIED AND BEEN PROVIDED WITH A COPY OF THE
PETITION. A PETITION SHALL SET FORTH SUCH FACTS AS
MAY BE REQUIRED TO SUPPORT AN EXCEPTION, INCLUDING A
GENERAL DESCRIPTION OF THE POTENTIAL IMPACTS OF SUCH
POTENTIAL SOURCE OR POTENTIAL ROUTE UPON
GROUNDWATERS AND THE AFFECTED WATER WELL, AND AN
EXPLANATION OF THE APPLICABLE TECHNOLOGY-BASED


CONTROLS WHICH WILL BE UTILIZED TO MINIMIZE THE
POTENTIAL FOR CONTAMINATION OF THE POTABLE WATER
SUPPLY WELL. (Section 14.2(c) of the Act)

e) THE BOARD SHALL GRANT AN EXCEPTION, WHENEVER IT IS
FOUND UPON PRESENTATION OF ADEQUATE PROOF, THAT
COMPLIANCE WITH THE SETBACK REQUIREMENTS OF THIS
SECTION WOULD POSE AN ARBITRARY AND UNREASONABLE
HARDSHIP UPON THE PETITIONER, THAT THE PETITIONER
WILL UTILIZE THE BEST AVAILABLE TECHNOLOGY CONTROLS
ECONOMICALLY ACHIEVABLE TO MINIMIZE THE LIKELIHOOD
OF CONTAMINATION OF THE POTABLE WATER SUPPLY WELL,
THAT THE MAXIMUM FEASIBLE ALTERNATIVE SETBACK WILL
BE UTILIZED, AND THAT THE LOCATION OF SUCH POTENTIAL
SOURCE OR POTENTIAL ROUTE WILL NOT CONSTITUTE A
SIGNIFICANT HAZARD TO THE POTABLE WATER SUPPLY
WELL. (Section 14.2(c) of the Act)

f) A DECISION MADE BY THE BOARD PURSUANT TO THIS
SUBSECTION SHALL CONSTITUTE A FINAL DETERMINATION.
(Section 14.2(c) of the Act)

g) THE GRANTING OF AN EXCEPTION BY THE BOARD SHALL NOT
EXTINGUISH THE WATER WELL OWNER'S RIGHTS UNDER
SECTION 6b OF THE ILLINOIS WATER WELL CONSTRUCTION
CODE IN INSTANCES WHERE THE OWNER HAS ELECTED NOT
TO PROVIDE A WAIVER PURSUANT TO subsection (a) OF THIS
SECTION. (Section 14.2(c) of the Act)

(Source: Amended at 21 Ill. Reg.6543, effective May 8, 1997.)

Section 616.105 General Exceptions

a) This Part does not apply to any facility or unit, or to the owner or operator
of any facility or unit, for which:

1) The owner or operator obtains certification of minimal hazard
pursuant to Section 14.5 of the Act; or

2) Alternate requirements are imposed in an adjusted standard
proceeding or in a site-specific rulemaking, pursuant to Title VII
of the Act; or

3) Alternate requirements are imposed in a regulated recharge area
proceeding pursuant to Section 17.4 of the Act; or



4) The owner or operator of the facility for storage and related
handling of pesticides or fertilizers for the purpose of commercial
application or at a central location for the purpose of distribution to
retail sales outlets that has filed a written notice of intent pursuant
to Section 14.6 of the Act with the Department of Agriculture by
January 1, 1993, OR WITHIN 6 MONTHS AFTER THE DATE
ON WHICH A MAXIMUM SETBACK ZONE IS
ESTABLISHED OR A REGULATED RECHARGE AREA
REGULATION IS ADOPTED THAT AFFECTS SUCH A
FACILITY; or has filed a written certification of intent pursuant to
Section 14.6 of the Act ON THE APPROPRIATE LICENSE OR
RENEWAL APPLICATION FORM SUBMITTED TO THE
DEPARTMENT OF AGRICULTURE OR OTHER
APPROPRIATE AGENCY (Section 14.6(a) of the Act). This
exception shall not apply to those facilities that are not in
compliance with the program requirements of subsections 14.6(b)
and 14.6(c) of the Act.

b) Nothing in this Section shall limit the authority of the Board to impose
requirements on any facility or unit within any portion of any setback zone
or regulated recharge area in any adjusted standard proceeding, site-
specific rulemaking or a regulatory proceeding establishing the regulated
recharge area.

(Source: Amended at 17 Ill. Reg. 1878, effective January 28, 1993)

SUBPART B: GROUNDWATER MONITORING REQUIREMENTS

Section 616.201 Applicability

This Subpart applies to:

a) Land treatment units subject to Subpart E;

b) Surface impoundments subject to Subpart F;

c) Pesticide storage and handling units subject to Subpart I;

d) Fertilizer storage and handling units subject to Subpart J;

e) Road oil storage and handling units subject to Subpart K; and

f) De-icing agent storage and handling units subject to Subpart L.

Section 616.202 Compliance Period



The compliance period is the active life of the unit, including closure and post-closure
care periods.

a) The active life begins when the unit first begins operation or one year after
the date of first applicability, whichever occurs later, and ends when the
post-closure care period ends.

b) The post-closure care period for units other than pesticide storage and
handling units subject to Subpart I and fertilizer storage and handling units
subject to Subpart J is five years after closure, except as provided at
Section 616.211(e).

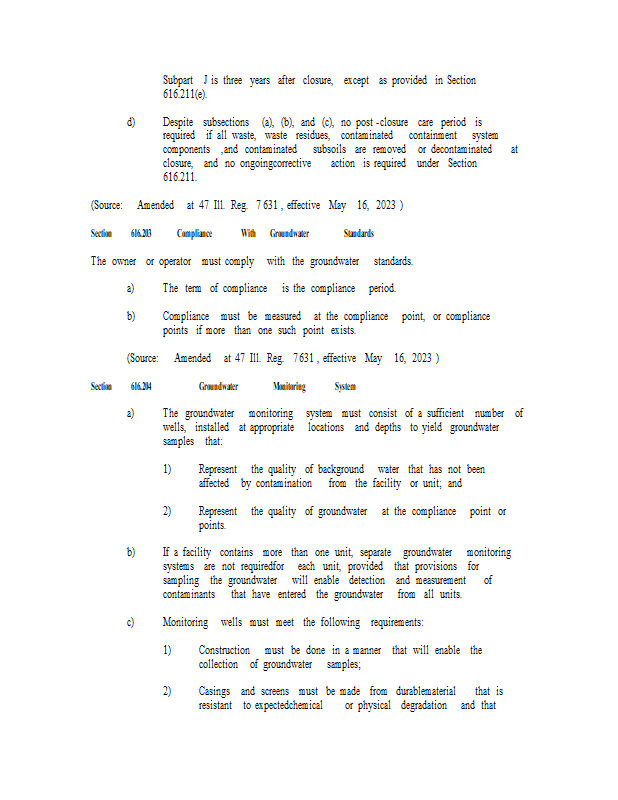

c) The post-closure care period for pesticide storage and handling units
subject to Subpart I and for fertilizer storage and handling units subject to
Subpart J is three years after closure, except as provided at Section
616.211(e).

d) Subsections (a), (b), and (c) notwithstanding, no post-closure care period
is required if all waste, waste residues, contaminated containment system
components and contaminated subsoils are removed or decontaminated at
closure, and no ongoing corrective action is required pursuant to Section
616.211.

Section 616.203 Compliance With Groundwater Standards

The owner or operator shall comply with the groundwater standards.

a) The term of compliance is the compliance period.

b) Compliance shall be measured at the compliance point, or compliance
points if more than one such point exists.

Section 616.204 Groundwater Monitoring System

a) The groundwater monitoring system must consist of a sufficient number of
wells, installed at appropriate locations and depths to yield groundwater
samples that:

1) Represent the quality of background water that has not been
affected by contamination from the facility or unit; and

2) Represent the quality of groundwater at the compliance point or
points.

b) If a facility contains more than one unit, separate groundwater monitoring
systems are not required for each unit, provided that provisions for


sampling the groundwater will enable detection and measurement of
contaminants that have entered the groundwater from all units.

c) Monitoring wells must meet the following requirements:

1) Construction must be done in a manner that will enable the
collection of groundwater samples;

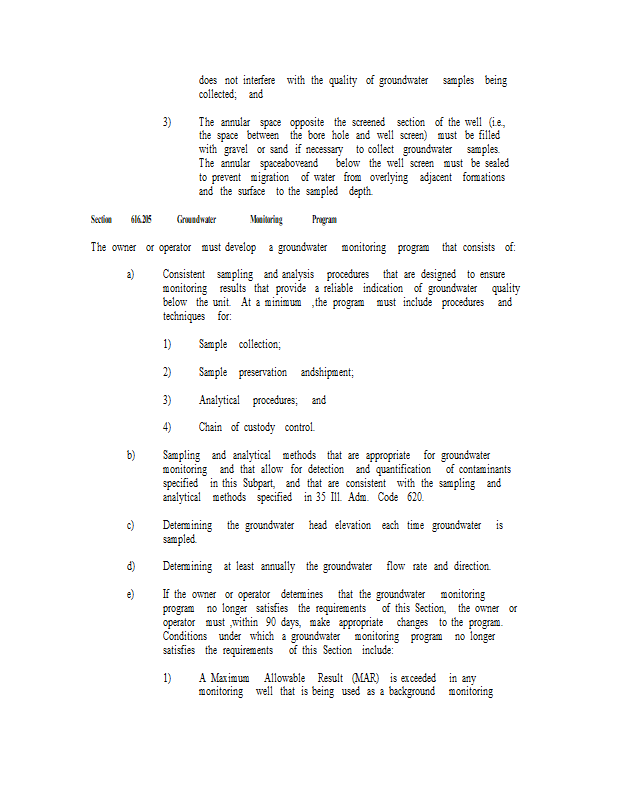

2) Casings and screens must be made from durable material that is
resistant to expected chemical or physical degradation and that
does not interfere with the quality of groundwater samples being
collected; and

3) The annular space opposite the screened section of the well (i.e.,
the space between the bore hole and well screen) must be filled
with gravel or sand if necessary to collect groundwater samples.
The annular space above and below the well screen must be sealed
to prevent migration of water from overlying adjacent formations
and the surface to the sampled depth.

Section 616.205 Groundwater Monitoring Program

The owner or operator shall develop a groundwater monitoring program that consists of:

a) Consistent sampling and analysis procedures that are designed to ensure
monitoring results that provide a reliable indication of groundwater
quality below the unit. At a minimum the program must include
procedures and techniques for:

1) Sample collection;

2) Sample preservation and shipment;

3) Analytical procedures; and

4) Chain of custody control.

b) Sampling and analytical methods that are appropriate for groundwater
monitoring and that allow for detection and quantification of contaminants
specified in this Subpart, and that are consistent with the sampling and
analytical methods specified in 35 Ill. Adm. Code 620.

c) A determination of the groundwater head elevation each time groundwater
is sampled.



d) A determination at least annually of the groundwater flow rate and
direction.

e) If the owner or operator determines that the groundwater monitoring
program no longer satisfies the requirements of this Section, the owner or
operator shall, within 90 days, make appropriate changes to the program.
Conditions under which a groundwater monitoring program no longer
satisfies the requirements of this Section include, but are not limited to:

1) A Maximum Allowable Result (MAR) is exceeded in any
monitoring well that is being used as a background monitoring
well or that the owner or operator has previously determined to be
hydraulically upgradient from the facility; or

2) A redetermination of groundwater flow rate and direction
conducted pursuant to subsection (d) shows that the existing
monitoring system is not capable of assessing groundwater quality
at the compliance points or points.

Section 616.206 Reporting

The owner or operator shall submit results of all monitoring required pursuant to this
Subpart to the Agency within 60 days after completion of sampling.

Section 616.207 Determining Background Values and Maximum Allowable
Results ("MARs")

a) The owner or operator shall, beginning no later than the beginning of
operation of the unit and continuing for a period of at least one year,
sample each monitoring well at least every two months and analyze each
such sample according to the following program:

1) For a unit subject to Subpart E (land treatment units), Subpart F
(surface impoundments), Subpart K (road oil storage and handling
units), or Subpart L (de-icing agent storage and handling units),
analysis shall be for pH, specific conductance, total organic
carbon, total organic halogen, and any other parameter that meets
the following criteria:

A) Material containing such parameter is stored, treated or
disposed of at the unit; and

B) There is a groundwater standard for such parameter.


2) For a unit subject to Subpart I for the storage and handling of
pesticides, analysis shall be for each pesticide stored or handled at
the unit.

3) For a unit subject to Subpart J for the storage and handling of
fertilizer, analysis shall be for pH, specific conductance, total
organic carbon, nitrates as nitrogen, ammonia nitrogen and for any
other parameter that meets the following criteria:

A) Material containing such parameter is stored or handled at
the unit; and

B) There is a groundwater standard for such parameter.

b) The results obtained under subsection (a) shall be used to calculate the
background mean, background standard deviation and the Maximum
Allowable Result (hereinafter referred to as "MAR") for each parameter
using the following procedures:

1) Results from all samples collected during the year must be used in
the calculations unless the owner or operator demonstrates to the
Agency that one or more of the results was due to error in
sampling, analysis or evaluation.

2) All calculations must be based on a minimum of at least six sample
measurements per parameter per well.

3) If any measured value is equal to or greater than its PQL, or if any
measured value is greater than its corresponding groundwater
standard, the actual measured value must be used calculating the
mean and standard deviation.

4) If any measured value is less than its PQL and less than its
corresponding groundwater standard, the PQL rather than the
measured value is to be used in calculating the mean and standard
deviation.

5) Except for pH, the MAR is the quantity equal to the measured
mean value of the contaminant plus the product of the
contaminant's standard deviation times the following constant:

Sample Size
Constant


6 2.10
7 2.03
8 1.97


9 1.93
10 1.90
11 1.88
12 1.85
13 1.84
14 1.82

6) For pH, the upper limit for the MAR is the quantity equal to the
measured background mean pH plus the product of the calculated
background standard deviation of the samples times the constant
tabulated in subsection (a)(5).

7) For pH, the lower limit of the MAR is the quantity equal to the
measured background mean pH minus the product of the
calculated background standard deviation of the samples times the
constant tabulated in subsection (a)(5).

Section 616.208 Continued Sampling

Upon completion of the background sampling required pursuant to Section 616.207, the
owner or operator shall sample each monitoring well for the duration of the compliance
period and analyze each sample, except as provided in Section 616.209, according to the
following program:

a) For a unit subject to Subpart E (land treatment units) or Subpart F (surface
impoundments), sampling shall be at least quarterly and analysis shall be
for pH, specific conductance, total organic carbon, total organic halogen,
and any other parameter that meets the following criteria:

1) Material containing such parameter is stored, treated or disposed of
at the unit; and

2) The Board has adopted a groundwater standard for such parameter.

b) For a unit subject to Subpart I for the storage and handling of pesticides,
sampling shall be at least quarterly, except as provided in subsection (d),
and analysis shall be for five specific pesticides or five groups of
chemically-similar pesticides stored or handled at the unit that are the
most likely to enter into the groundwater from the unit and that are the
most toxic. The owner or operator shall choose the five specific pesticides
or five groups based upon the following criteria:

1) The volume of the pesticides stored or handled at the unit;

2) The leachability characteristics of the pesticides stored or handled
at the unit;



3) The toxicity characteristics of the pesticides stored or handled at
the unit;

4) The history of spillage of the pesticides stored or handled at the
unit; and

5) Any groundwater standards for the pesticides stored or handled at
the unit.

c) For a unit subject to Subpart J for the storage and handling of fertilizer,
sampling shall be at least quarterly, except as provided in subsection (d),
and analysis shall be for pH, total organic carbon, nitrates as nitrogen,
ammonia nitrogen, and specific conductance.

d) Subsections (b) and (c) notwithstanding, for a unit subject to Subpart I for
the storage and handling of pesticides or for a unit subject to Subpart J for
the storage and handling of fertilizers, sampling shall be at least semi-
annually provided that all of the following conditions are met:

1) The unit is in compliance with the containment requirements of 8
Ill. Adm. Code 255;

2) There have been no detections within the preceding two years in
any of the monitoring wells of any contaminant stored or handled
at the facility or of any contaminant attributable to operation of the
unit; and

e) For a unit subject to Subpart K for the storage and handling of road oils or
subject to Subpart L for the storage and handling of de-icing agents,
sampling shall be annually and analysis shall be for pH, specific
conductance, total organic carbon and total organic halogen.

Section 616.209 Preventive Notification and Preventive Response

a) Preventive notification is required for each well in which:

1) A MAR is found to be exceeded (except for pH), or

2) There is a detection of any contaminant:

A) Required to be monitored under Section 616.207(a);

B) Listed under 35 Ill. Adm. Code 620.310(a)(3)(A) (except
due to natural causes and except for pH);


C) Denoted as carcinogen under 35 Ill. Adm. Code
620.410(b); or

D) Subject to a standard under 35 Ill. Adm. Code 620.430
(except due to natural causes).

b) Whenever preventive notification is required under subsection (a), the
owner or operator of the unit shall confirm the detection by resampling the
monitoring well or wells. This resampling shall be analyzed for each
parameter found to be present in the first sample and be performed within
30 days after the date on which the first sample analyses are received, but
no later than 90 days after the results of the first sample are received.

c) If preventive notification is provided under subsection (b) by the owner or
operator and the applicable standard has not been exceeded, the Agency
shall determine whether the levels for each parameter as set forth in 35 Ill.
Adm. Code 620.310(a)(3)(A) are exceeded. If an exceedence is
determined, the Agency shall notify the owner or operator in writing
regarding such finding.

d) Upon receipt of a finding that an exceedence has occurred, the owner or
operator shall submit to the Agency within 60 days a report that, at a
minimum, shall include the degree and extent of contamination and the
measures that are being taken to minimize or eliminate this contamination,
in accordance with a prescribed schedule. The owner or operator may also
provide a demonstration that:

1) The contamination is the result of contaminants remaining in
groundwater from a prior release for which appropriate action was
taken in accordance with the laws and regulations in existence at
the time of the release;

2) The source of contamination is not due to the on-site release of
contaminants; or

3) The detection resulted from error in sampling analysis or
evaluation.

e) Based upon the report in subsection (d) as well as any other relevant
information available to the Agency, the Agency shall provide a written
response to the owner or operator that specifies either:

1) Concurrence with the preventive response being undertaken; or

2) Non-concurrence with the preventive response being undertaken
and a description of the inadequacies of such action.



f) An owner or operator who receives a written response of concurrence
pursuant to subsection (e) shall provide periodic program reports to the
Agency regarding the implementation of the preventive response.

g) An owner or operator who receives a written response of non-concurrence
pursuant to subsection (e) shall have 30 days to correct the inadequacies
and to resubmit the report to the Agency or to request a conference with
the Agency. Upon receipt of a written request for such a conference, the
Agency shall schedule and hold the conference within 30 days. Following
a conference, the Agency shall provide the owner or operator with a final
determination regarding the adequacy of the preventive response.

h) An owner or operator shall be responsible for implementing adequate
preventive response as determined pursuant to this Section.

i) After completion of preventive response, the concentration of a
contamination listed in 35 Ill. Adm. Code 620.310(a)(3)(A) in
groundwater may exceed 50 percent of the applicable numerical standard
in 35 Ill. Adm. Code 620.Subpart D only if the following conditions are
met:

1) The exceedence has been minimized to the extent practicable;

2) Beneficial use, as appropriate for the class of groundwater, has
been assured; and

3) Any threat to public health or the environment has been
minimized.

j) Nothing in this Section shall in any way limit the authority of the State or
the United States to require or perform any corrective action process.

Section 616.210 Corrective Action Program

Whenever any applicable groundwater standard under 35 Ill. Adm. Code 620.Subpart D
is exceeded, an owner or operator shall be required to undertake the following corrective
action:

a) Notify the Agency of the need to undertake a corrective action program
when submitting the groundwater monitoring results required pursuant to
Section 616.206. The notification must indicate in which wells and for
which parameters a groundwater standard was exceeded.

b) Continue to sample and analyze according to the provisions of Section
616.208(a), except that:


1) For all units subject to Subpart I for the storage and handling of
pesticides, the frequency of all such sampling shall be quarterly
until no measured values above the groundwater standard have
been recorded for any parameter for two consecutive quarters.

2) For a unit subject to Subpart J for the storage and handling of
fertilizers, sampling shall be quarterly for the parameters set forth
in Section 616.207(a)(3) stored or handled at the unit until no
measured values above the groundwater standard have been
recorded for two consecutive quarters.

c) If sample values above any groundwater standard are confirmed pursuant
to Section 616.209(b), the owner or operator shall:

1) Submit to the Agency an engineering feasibility plan for a
corrective action program designed to achieve the requirements of
subsection (e) through (j).

A) Such feasibility plan shall be submitted to the Agency
within 180 days after the date of the sample in which a
groundwater standard was initially exceeded.

B) This requirement is waived if no groundwater standard is
exceeded in any sample taken pursuant to subsection (b) for
two consecutive quarters.

d) Except as provided in subsection (c)(1)(B), the Agency shall provide a
written response to the owner or operator based upon the engineering
feasibility plan and any other relevant information that specifies either:

1) Concurrence with the feasibility plan for corrective action; or

2) Non-concurrence with the feasibility plan for corrective action and
a description of the inadequacies of such plan.

e) An owner or operator who receives a written response of concurrence
pursuant to subsection (d) shall provide periodic progress reports to the
Agency regarding the implementing of the preventive response.

f) An owner or operator who receives a written response of non-concurrence
pursuant to subsection (d) shall have 30 days to correct the inadequacies
and to resubmit the report to the Agency or to request a conference with
the Agency. Upon receipt of a written request for such a conference, the
Agency shall schedule and hold the conference within 30 days. Following

a conference, the Agency shall provide the owner or operator with a final
determination regarding the adequacy of the corrective action.

g) An owner or operator shall be responsible for implementing adequate
preventive response as determined pursuant to this Section.

h) Except as provided in subsection (c)(1)(B), the owner or operator shall:

1) Begin the corrective action program specified in the engineering
feasibility plan no later than the date of receipt of concurrence
from the Agency.

2) Establish and implement a groundwater monitoring program to
demonstrate the effectiveness of the corrective action program.

3) Take corrective action that results in compliance with the
groundwater standards:

A) At all compliance points; and

B) Beyond the unit boundary, where necessary to protect
human health and the environment, unless the owner or
operator demonstrates to the Agency that, despite the
owner's or operator's best efforts, the owner or operator was
unable to obtain the necessary permission to undertake
such action. The owner or operator is not relieved of
responsibility to clean up a release that has migrated
beyond the unit boundary where off-site access is denied.

4) Continue corrective action measures to the extent necessary to
ensure that no groundwater standard is exceeded at the compliance
point or points.

5) The owner or operator may terminate corrective action measures
taken beyond the compliance period as identified at Section
616.202 if the owner or operator can demonstrate, based on data
from the post-closure groundwater monitoring program under
subsection (h)(2), that no groundwater standard has been exceeded
for a period of three consecutive years.

6) Report in writing to the Agency on the effectiveness of the
corrective action program. The owner or operator shall submit
these reports semi-annually.

7) If the owner or operator determines that the corrective action
program no longer satisfies the requirements of this Section, the


owner or operator shall, within 90 days, make any appropriate
changes to the program.

i) Subsections (b), (c) and (f) do not apply if the owner or operator makes an
alternative corrective action demonstration pursuant to Section 616.211.

Section 616.211 Alternative Corrective Action Demonstration

If a corrective action program is required pursuant to Section 616.210, it is presumed that
contamination from the facility or unit that is being monitored is responsible for the
groundwater standard being exceeded. An owner or operator may overcome that
presumption by making a demonstration that a source other than the facility or unit that is
being monitored caused the groundwater standard to be exceeded, or that the cause of the
groundwater standard being exceeded is due to error in sampling, analysis or evaluation.

a) In making such demonstration the owner or operator shall:

1) Notify the Agency that the owner or operator intends to make a
demonstration under this Section when submitting the groundwater
monitoring results pursuant to Section 616.206; and

2) Submit a report to the Agency that demonstrates that a source other
than a facility or unit for which he is the owner or operator caused
the groundwater standard to be exceeded, or that the groundwater
standard was exceeded due to an error in sampling, analysis or
evaluation. Such report must be included with the next submission
of groundwater monitoring results required pursuant to Section
616.206; and

b) The Agency shall provide a written response to the owner or operator,
based upon the written demonstration and any other relevant information,
that specifies either:

1) Concurrence with the written demonstration for alternative
corrective action with requirements to continue to monitor in
accordance with the groundwater monitoring program established
pursuant to Sections 616.205 and 616.210; or

2) Non-concurrence with the written demonstration for alternative
corrective action and a description of the inadequacies of such
demonstration.

c) An owner or operator who receives a written response of non-concurrence
pursuant to subsection (c) shall have 30 days to so respond to the Agency
in writing or to request a conference with the Agency. Upon receipt of a
written request for such a conference, the Agency shall schedule and hold


the conference within 30 days. Following a conference, the Agency shall
provide the owner or operator with a final determination regarding the
adequacy of the alternative corrective action.

d) The owner or operator shall begin the corrective action program in
accordance with the requirements of Section 616.210(f).

SUBPART C: GENERAL CLOSURE AND POST-CLOSURE REQUIREMENTS

Section 616.301 Applicability

This Subpart applies to:

a) Land treatment units subject to Subpart E;

b) Surface impoundments subject to Subpart F;

c) Pesticide storage and handling units subject to Subpart I; and

d) Fertilizer storage and handling units subject to Subpart J.

Section 616.302 Closure Performance Standard

The owner or operator shall close the unit in a manner that:

a) Controls, minimizes or eliminates, to the extent necessary to protect
human health and the environment, post-closure escape of waste, waste
constituents, leachate, contaminated runoff or waste decomposition
products to soils, groundwaters, surface waters, or the atmosphere;

b) Minimizes the need for maintenance during and beyond the post-closure
care period; and

c) Complies with the closure requirements of 35 Ill. Adm. Code: Subtitles C
and G.

Section 616.303 Certification of Closure


Within 60 days after completion of closure of each unit, the owner or operator shall
submit to the Agency, by registered or certified mail, a certification that the unit has been
closed in accordance with the closure requirements. The certification must be signed by
the owner or operator and by an independent registered professional engineer.
Documentation supporting the independent registered professional engineer's
certification must be furnished to the Agency upon request.



Section 616.304 Survey Plat


a) No later than the submission of the certification of closure of each unit,
the owner or operator shall submit to any local zoning authority, or
authority with jurisdiction over local land use, and to the Agency, and
record with land titles, a survey plat indicating the location and
dimensions of any waste disposal units, and any pesticide or fertilizer
storage and handling units, with respect to permanently surveyed
benchmarks. This plat must be prepared and certified by a registered land
surveyor.

b) For pesticide storage and handling units or for fertilizer storage and
handling units, records or reports required under any other state or Federal
regulatory program and which contain the information required above may
be used to satisfy this reporting requirement.

Section 616.305 Post-Closure Notice for Waste Disposal Units


No later than 60 days after certification of closure of the unit, the owner or operator of a
unit subject to Subparts D, E, or F shall submit to the Agency, to the County Recorder
and to any local zoning authority or authority with jurisdiction over local land use, a
record of the type, location and quantity of wastes disposed of within each cell or other
area of the unit.

Section 616.306 Certification of Completion of Post-closure Care

No later than 60 days after completion of the established post-closure care period, the
owner or operator shall submit to the Agency, by registered or certified mail, a
certification that the post-closure care period for the unit was performed in accordance
with the specifications in the approved post-closure plan. The certification must be
signed by the owner or operator and an independent registered professional engineer.
Documentation supporting the independent registered professional engineer's
certification must be furnished to the Agency upon request.

Section 616.307 Post-Closure Care Period


The post-closure care period is as defined at Section 616.202.

SUBPART D: ON-SITE LANDFILLS

Section 616.401 Applicability

This Subpart applies to new landfill units which are located wholly or partially within a
setback zone or regulated recharge area and that contain special waste or other waste
generated on-site, except that this Subpart does not apply to any new landfill unit that:



a) Contains solely one or more of the following: hazardous waste, livestock
waste, landscape waste, or construction and demolition debris; or

b) Is exempt from this Part pursuant to Section 616.105.

Section 616.402 Prohibitions

a) Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person
shall cause or allow the construction or operation of any landfill unit that
is:

1) Located wholly or partially within a minimum setback zone and
that is either a new potential primary source or a new potential
secondary source, except as specified in Sections 616.104(a) and
(b); or

2) Located wholly or partially within a maximum setback zone and
that is a new potential primary source, except as specified in
Section 616.104(b).

b) No person shall cause or allow the disposal of special waste in a new on-
site landfill unit within a regulated recharge area if the distance from the
wellhead of the community water supply well to the landfill unit is 2500
feet or less, except as provided at Section 616.105.


SUBPART E: ON-SITE LAND TREATMENT UNITS

Section 616.421 Applicability

This Subpart applies to new land treatment units that are located wholly or partially
within a setback zone or regulated recharge area and that treat or dispose of special waste
or other waste generated on-site, except that this Subpart does not apply to any new land
treatment unit that:

a) Contains solely one or more of the following: hazardous waste, livestock
waste, landscape waste, or construction and demolition debris; or

b) Is exempt from this Part pursuant to Section 616.105.

Section 616.422 Prohibitions

a) Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person
shall cause or allow the construction or operation of any land treatment
unit that is:



1) Located wholly or partially within a minimum setback zone and
that is either a new potential primary source or a new potential
secondary source, except as specified in Sections 616.104(a) and
(b); or

2) Located wholly or partially within a maximum setback zone and
that is a new potential primary source, except as specified in
Section 616.104(b).

b) Nothing in this Section shall prohibit land treatment within a maximum
setback zone regulated by the Act of sludge resulting from the treatment
of domestic wastewater or of sludge resulting from the treatment of water
to produce potable water, if such activities are conducted in accordance
with the Act and 35 Ill. Adm. Code: Subtitle C.

Section 616.423 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.424 Design and Operating Requirements

The owner or operator shall design and operate the land treatment site in accordance with
35 Ill. Adm. Code: Subtitle C and 35 Ill. Adm. Code: Subtitle G.

Section 616.425 Closure and Post-Closure Care

The owner or operator shall comply with the requirements of Subpart C.

SUBPART F: ON-SITE SURFACE IMPOUNDMENTS

Section 616.441 Applicability

This Subpart applies to new surface impoundment units that are located wholly or
partially within a setback zone or regulated recharge area and that contain special waste
or other waste generated on-site, except that this Subpart does not apply to any new
surface impoundment unit that:

a) Contains solely one or more of the following: hazardous waste, livestock
waste, landscape waste, or construction and demolition debris; or

b) Is exempt from this Part pursuant to Section 616.105.

Section 616.442 Prohibitions

Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person shall cause or
allow the construction or operation of any surface impoundment unit that is:



a) Located wholly or partially within a minimum setback zone and that is
either a new potential primary source or a new potential secondary source,
except as specified in Sections 616.104(a) and (b); or

b) Located wholly or partially within a maximum setback zone and that is a
new potential primary source, except as specified in Section 616.104(b).

Section 616.443 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.444 Design Requirements

a) The owner or operator of a surface impoundment shall install two or more
liners and a leachate collection system between such liners. The
requirement for the installation of two or more liners in this subsection
may be satisfied by the installation of a top liner designed, operated, and
constructed of materials to prevent the migration of any constituent into
such liner during the period such facility remains in operation (including
any post-closure monitoring period), and a lower liner designed, operated
and constructed to prevent the migration of any constituent through such
liner during such period. For the purpose of the preceding sentence, a
lower liner shall be deemed to satisfy such requirement if it is constructed
of at least a 5-foot thick layer of recompacted clay or other natural
material with a permeability of no more than 1 X 10(-7) centimeter per
second.

b) A surface impoundment must be designed, constructed, maintained and
operated to prevent overtopping resulting from normal or abnormal
operations; overfilling; wind and wave action; rainfall; run-on;
malfunctions of level controllers, alarms and other equipment; and human
error.

c) A surface impoundment must have dikes that are designed, constructed
and maintained with sufficient structural integrity to prevent massive
failure of the dikes. In ensuring structural integrity, it must not be
presumed that the liner system will function without leakage during the
active life of the surface impoundment.

d) The owner or operator shall maintain the following items:

1) Records describing the contents of the impoundment; and



2) A map showing the exact location and dimensions of the
impoundment, including depth with respect to permanently
surveyed benchmarks.

Section 616.445 Inspection Requirements

a) During construction and installation, liners must be inspected for
uniformity, damage and imperfections (e.g., holes, cracks, thin spots or
foreign materials). Immediately after construction or installation:

1) Synthetic liners and covers must be inspected to ensure tight seams
and joints and the absence of tears, punctures and blisters; and

2) Soil-based and admixed liners and covers must be inspected for
imperfections including lenses, cracks, channels, root holes or
other structural non-uniformities that may cause an increase in the
permeability of that liner or cover.

b) While a surface impoundment is in operation, it must be inspected weekly
and after storms to detect evidence of any of the following:

1) Deterioration, malfunctions or improper operation of overtopping
control systems;

2) Sudden drops in the level of the impoundment's contents;

3) Severe erosion or other signs of deterioration in dikes or other
containment devices; or

4) A leaking dike.

Section 616.446 Operating Requirements

a) No person shall cause or allow incompatible materials to be placed in the
same surface impoundment unit.

b) A surface impoundment unit must be removed from service in accordance
with subsection (c) when:

1) The level of liquids in the unit suddenly drops and the drop is not
known to be caused by changes in the flows into or out of the unit;
or

2) The dike leaks.


c) When a surface impoundment unit must be removed from service as
required by subsection (b), the owner or operator shall:

1) Shut off the flow or stop the addition of wastes into the
impoundment unit;

2) Contain any surface leakage that has occurred or is occurring;

3) Stop the leak;

4) Take any other necessary steps to stop or prevent catastrophic
failure;

5) If a leak cannot be stopped by any other means, empty the
impoundment unit; and

6) Notify the Agency of the removal from service and corrective
actions that were taken, such notice to be given within 10 days
after the removal from service.

d) No surface impoundment unit that has been removed from service in
accordance with the requirements of this Section may be restored to
service unless the portion of the unit that failed has been repaired.

e) A surface impoundment unit that has been removed from service in
accordance with the requirements of this Section and that is not being
repaired must be closed in accordance with the provisions of Section
616.447.

Section 616.447 Closure and Post-Closure Care

a) If closure is to be by removal, the owner or operator shall remove all
waste, all waste residues, contaminated containment system components
(liners, etc.), contaminated subsoils and structures and equipment
contaminated with waste and leachate; and, if disposed of in the State of
Illinois, dispose of them at a disposal site permitted by the Agency under
the Act.

b) If closure is not to be by removal, the owner or operator shall comply with
the requirements of Subpart C and shall:

1) Eliminate free liquids by removing liquid wastes or solidifying the
remaining wastes and waste residues.

2) Stabilize remaining wastes to a bearing capacity sufficient to
support final cover.





3) Cover the surface impoundment unit with a final cover designed
and constructed to:

A) Provide long-term minimization of the migration of liquids
through the closed impoundment unit;

B) Function with minimum maintenance;

C) Promote drainage and minimize erosion or abrasion of the
final cover;

D) Accommodate settling and subsidence so that the cover's
integrity is maintained; and

E) Have a permeability less than or equal to the permeability
of any bottom liner system.

c) If some waste residues or contaminated materials are left in place at final
closure, the owner or operator shall comply with the requirements of
Subpart C and shall for a period of 5 years after closure:

1) Maintain the integrity and effectiveness of the final cover,
including making repairs to the cap as necessary to correct the
effects of settling, subsidence, erosion or other events;

2) Maintain and monitor the groundwater monitoring system; and

3) Prevent run-on and run-off from eroding or otherwise damaging
the final cover.

(Source: Amended in R96-18 at 21 Ill. Reg. 6543, effective May 8, 1997.)

SUBPART G: ON-SITE WASTE PILES

Section 616.461 Applicability

This Subpart applies to new waste piles that are located wholly or partially within a
setback zone or regulated recharge area and that contain special waste or other waste
generated on-site, except that this Subpart does not apply to any new waste pile that:

a) Contains solely one or more of the following: hazardous waste, livestock
waste, landscape waste, or construction and demolition debris; or

b) Consists of sludge resulting from the treatment of domestic wastewater
from a POTW and the sludge pile is situated on an underdrained pavement


and operated in accordance with the Act, 35 Ill. Adm. Code: Subtitle C
and 35 Ill. Adm. Code: Subtitle G; or

c) Is exempt from this Part pursuant to Section 616.105.

Section 616.462 Prohibitions

a) Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person
shall cause or allow the construction or operation of any waste pile that is:

1) Located wholly or partially within a minimum setback zone and
that is either a new potential primary source or a new potential
secondary source, except as specified in Sections 616.104(a) and
(b); or

2) Located wholly or partially within a maximum setback zone and
that is a new potential primary source, except as specified in
Section 616.104(b).

b) No person shall cause or allow the disposal of special waste in a new
waste pile within a regulated recharge area if the distance from the
wellhead of the community water supply well to the waste pile is 2500
feet or less, except as provided at Section 616.105

c) Nothing in this Section shall prohibit a waste pile, within a maximum
setback zone regulated by the Act, of sludge resulting from the treatment
of domestic wastewater or of sludge resulting from the treatment of water
to produce potable water, if such activities are conducted in accordance
with the Act, 35 Ill. Adm. Code: Subtitle C, Subtitle F, and Subtitle G.

Section 616.463 Design and Operating Requirements

a) No person shall cause or allow:

1) Disposal or storage in the waste pile of liquids or materials
containing free liquids; or

2) Migration and runoff of leachate into adjacent soil, surface water,
or groundwater.

b) A waste pile must comply with the following standards:

1) The waste pile must be under an impermeable membrane or cover
that provides protection from precipitation;

2) The waste pile must be protected from surface water run-on; and



3) The waste pile must be designed and operated to control wind
dispersal of waste by a means other than wetting.

Section 616.464 Closure

The owner or operator shall accomplish closure by removing and disposing of all wastes
and containment system components (liners, etc). If disposed of in the State of Illinois,
the waste and containment system components must be disposed of at a disposal site
permitted by the Agency under the Act.


SUBPART H: UNDERGROUND STORAGE TANKS

Section 616.501 Applicability

This Subpart applies to new underground storage tanks that are located wholly or
partially within a setback zone or regulated recharge area and that contain special waste,
except that this Subpart does not apply to any new underground storage tank that:

a) Pursuant to 35 Ill. Adm. Code 731.110(a) must meet the requirements set
forth in 35 Ill. Adm. Code 731, unless such a tank is excluded from those
requirements pursuant to 35 Ill. Adm. Code 731.110(b); or

b) Must have interim status or a RCRA permit under 35 Ill. Adm. Code:
Subtitle G; or

c) Is exempt from this Part pursuant to Section 616.105.

Section 616.502 Design and Operating Requirements

Owners and operators of new underground storage tanks that store special waste shall
meet the requirements set forth in 35 Ill. Adm. Code 731. Such requirements must be
met even if the tanks are excluded from coverage under 35 Ill. Adm. Code 731 by 35 Ill.
Adm. Code 731.110(b). The exclusions set forth in 35 Ill. Adm. Code 731.110(b) shall
not apply to any underground storage tank that stores special waste.

SUBPART I: PESTICIDE STORAGE AND HANDLING UNITS

Section 616.601 Applicability

a) This Subpart applies to any new unit for the storage and handling of
pesticides that is located wholly or partially within a setback zone or
regulated recharge area and that:

1) Is operated for the purpose of commercial application; or



2) Stores or accumulates pesticides prior to distribution to retail sales
outlets, including but not limited to a unit that is a warehouse or
bulk terminal.

b) Subsections (1) and (2) notwithstanding, this Subpart does not apply to
any unit exempt pursuant to Section 616.105.

Section 616.602 Prohibitions

Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person shall cause or
allow the construction or operation of any unit for the storage and handling of pesticides
that is:

a) Located wholly or partially within a minimum setback zone and that is
either a new potential primary source or a new potential secondary source,
except as specified in Section 616.104(a) and (b); or

b) Located wholly or partially within a maximum setback zone and that is a
new potential primary source, except as specified in Section 616.104(b).

Section 616.603 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.604 Design and Operating Requirements

The owner or operator shall:

a) Maintain a written record inventorying all pesticides stored or handled at
the unit.

b) At least weekly when pesticides are being stored, inspect storage
containers, tanks, vents, valves, and appurtenances for leaks or
deterioration caused by corrosion or other factors. If a leak or
deterioration is found in any of these devices, the owner or operator must
immediately repair or replace the device. The owner or operator shall
maintain a written record of all inspections conducted under this Section
and of all maintenance relating to leaks and deterioration of these devices.

c) Store all containers containing pesticides within a pesticide secondary
containment structure, if such containers are stored outside of a roofed
structure or enclosed warehouse. For the purpose of this subsection, a
pesticide secondary containment structure is a structure that complies with
the design standards set forth in 8 Ill. Adm. Code 255.



d) Maintain all written records required under this Section at the site. The
owner or operator shall provide any such record to the Agency upon
request.

(Board Note: Owners or operators of facilities or units subject to this Part may
also be subject to regulations under 8 Ill. Adm. Code 255.)

Section 616.605 Closure and Post-Closure Care

The owner or operator shall comply with the requirements of Subpart C.

SUBPART J: FERTILIZER STORAGE AND HANDLING UNITS

Section 616.621 Applicability

This Subpart applies to any new unit for the storage and handling of fertilizers that is
located wholly or partially within a setback zone or regulated recharge area and that:

a) Is operated for the purpose of commercial application; or

b) Stores or accumulates fertilizers prior to distribution to retail sales outlets,
including but not limited to a unit that is a warehouse or bulk terminal.

c) Subsections (a) and (b) notwithstanding, this Subpart shall not apply to
any unit exempt pursuant to Section 616.105.

Section 616.622 Prohibitions

Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person shall cause or
allow the construction or operation of any unit for the storage and handling of fertilizers
that is:

a) Located wholly or partially within a minimum setback zone and that is
either a new potential primary source or a new potential secondary source,
except as specified in Sections 616.104(a) and (b); or

b) Located wholly or partially within a maximum setback zone and that is a
new potential primary source, except as specified in Section 616.104(b).

Section 616.623 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.624 Design and Operating Requirements

The owner or operator shall:



a) Maintain a written record inventorying all fertilizers stored or handled at
the unit.

b) At least weekly when fertilizers are being stored, inspect storage
containers, tanks, vents, valves, and appurtenances for leaks or
deterioration caused by corrosion or other factors. If a leak or
deterioration is found in any of these devices, the owner or operator shall
immediately repair or replace the device. The owner or operator shall
maintain a written record of all inspections conducted under this Section
and of all maintenance relating to leaks and deterioration of these devices.

c) Store all containers containing fertilizers (except anhydrous ammonia)
within a fertilizer secondary containment structure, if such containers are
stored outside of a roofed structure or enclosed warehouse. For the
purpose of this subsection, a fertilizer secondary containment structure is a
structure that complies with the design standards set forth in 8 Ill. Adm.
Code 255.

d) Maintain all written records required under this Section at the site. The
owner or operator shall provide any such record to the Agency upon
request.

(Board Note: Owners or operators of facilities or units subject to this Part may
also be subject to regulations under 8 Ill. Adm. Code 255.)

Section 616.625 Closure and Post-Closure Care

The owner or operator shall comply with the requirements of Subpart C.

SUBPART K: ROAD OIL STORAGE AND HANDLING UNITS

Section 616.701 Applicability

This Subpart applies to any new unit for the storage and related handling of road oils that
is located wholly or partially within a setback zone or regulated recharge area and at
which greater than 25,000 gallons of road oils are stored or accumulated at any one time,
except as otherwise provided in Section 616.105.

Section 616.702 Prohibitions

Pursuant to Sections 14.2(a), 14.2(c) and 14.3(e) of the Act, no person shall cause or
allow the construction or operation of any unit for the storage and handling of road oils
that is:



a) Located wholly or partially within a minimum setback zone and that is
either a new potential primary source or a new potential secondary source,
except as specified in Sections 616.104(a) and (b); or

b) Located wholly or partially within a maximum setback zone and that is a
new potential primary source, except as specified in Section 616.104(b).

Section 616.703 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.704 Design and Operating Requirements for Above-Ground
Storage Tanks

a) The owner or operator of a tank shall not cause or allow:

1) Materials to be placed in a tank if such materials could cause the
tank to rupture, leak, corrode, or otherwise fail.

2) Uncovered tanks to be placed or operated so as to maintain less
than 60 centimeters (2 feet) of freeboard unless:

A) The tank is equipped with a containment structure (e.g.,
dike or trench), a drainage control system, or a diversion
structure (e.g., standby tank); and

B) Such containment structure, drainage control system, or
diversion structure has a capacity that equals or exceeds the
volume of the top 60 centimeters (2 feet) of the tank.

3) Material to be continuously fed into a tank, unless the tank is
equipped with a means to stop this inflow (e.g., a feed cutoff
system or a bypass system to a standby tank).

4) Incompatible materials to be placed in the same tank.

5) Material to be placed in a tank that previously held an
incompatible material unless the incompatible material has been
washed from the tank.

6) Ignitable or reactive material to be placed in a tank unless:

A) The material is stored or treated in such a way that it is
protected from any material or conditions that may cause it
to ignite or react; or


B) The tank is used solely for emergencies.

b) The owner or operator shall provide and maintain primary containment for
the tank such that:

1) The tank has a minimum shell thickness that ensures that the tank
will not fail (i.e., collapse, rupture, etc.).

2) The tank is compatible with the material to be placed in the tank or
the tank is lined with a substance that is compatible with the
material to be placed in the tank.

c) The owner or operator shall provide and maintain secondary containment
for the tank that:

1) Is capable of containing the volume of the largest tank or 10% of
the total volume for all tanks, whichever is greater;

2) Is constructed of material capable of containing a spill until
cleanup occurs (e.g., concrete or clay). The base of the secondary
containment area must be capable of minimizing vertical migration
of a spill until cleanup occurs (e.g., concrete or clay);

3) Has cover (e.g., crushed rock or vegetative growth) on earthen
embankments sufficient to prevent erosion; and

4) Isolates the tank from storm water drains and from combined storm
water drains and sanitary sewer drains.

d) If incompatible materials are handled at the site, secondary containment
sufficient to isolate the units containing the incompatible materials must
be provided.

e) The owner or operator of a tank shall also:

1) Test above-ground tanks and associated piping every five years for
structural integrity.

2) Remove uncontaminated storm water run off from the secondary
containment area immediately after a precipitation event.

3) Handle contaminated storm water run off in accordance with 35 Ill.
Adm. Code 302.Subpart A.

4) Provide a method for obtaining a sample from each tank.



5) Install, maintain, and operate a material level indicator on each
tank.

6) When not in use, lock all gauges and valves that are used to inspect
levels in the tank. All such devices must be located within the
containment structure.

Section 616.705 Closure

a) At closure, all materials must be removed from containers, tanks,
discharge control equipment, and discharge confinement structures.

b) All materials that are to be disposed of in the State of Illinois must be
disposed of at a disposal site permitted by the Agency under the Act.

SUBPART L: DE-ICING AGENT STORAGE AND HANDLING UNITS

Section 616.721 Applicability

This Subpart applies to any new facility for the storage and related handling of de-icing
agents that is located wholly or partially within a setback zone and at which more than
50,000 pounds of de-icing agent are stored or accumulated at any one time, except as
otherwise provided in Section 616.105. For the purpose of this Subpart:

a) An indoor storage unit means a storage unit with a roof capable of
protecting the de-icing agents from wind and precipitation;

b) An outdoor storage unit means a unit for the storage of de-icing agents
that is not an indoor storage unit.

Section 616.722 Prohibitions

a) Pursuant to Sections 14.2(a), 14.2(c) and (14.3(e) of the Act, no person
shall cause or allow the construction or operation of any unit for the
storage and handling of de-icing agents that is:

1) Located wholly or partially within a minimum setback zone and
that is either a new potential primary source or a new potential
secondary source, except as specified in Sections 616.104(a) and
(b); or

2) Located wholly or partially within a maximum setback zone and
that is a new potential primary source, except as specified in
Section 616.104(b).



b) No person shall cause or allow the construction or operation within any
setback zone of any outdoor facility for the storage and handling of de-
icing agents, except as provided at Section 616.105.

Section 616.723 Groundwater Monitoring

The owner or operator shall comply with the requirements of Subpart B.

Section 616.724 Design and Operating Requirements for Indoor Storage
Facilities

a) The base of the facility must be constructed of materials capable of
containing de-icing agents (i.e., bituminous or concrete pad).

b) The roof and walls of the facility must be constructed of materials capable
of protecting the storage pile from precipitation and capable of preventing
dissolved de-icing agents from entering into the adjacent soil, surface
water, or groundwater. The walls of the facility must be constructed of
materials compatible with the de-icing agents to be placed in the facility.
Run-off from the roof must be diverted away from the loading pad.

c) The loading pad of the facility must be constructed of materials capable of
containing a spill (i.e., concrete or bituminous pad). The borders of the
loading pad must be curbed to prevent dry or dissolved de-icing agents
from migrating from the loading pad into the adjacent soils, surface water,
or groundwater. The loading pad must be covered by a roof of sufficient
size to provide the pad and de-icing agents with protection from
precipitation to prevent run-off or dissolved de-icing agents from entering
into the adjacent soil, surface water, or groundwater.

d) All areas surrounding the storage pile, including but not limited to the
loading pad, must be routinely inspected to determine whether any release
of de-icing agents has occurred. Such areas shall be cleaned as necessary.
Spilled de-icing agents must be placed back under the protective covering
of the indoor storage pile. The storage pile must be reshaped as often as
necessary to prevent leaching.

e) The integrity of the facility and loading pad must be maintained.

f) All areas surrounding the storage facility must be inspected daily to
determine whether any release of de-icing agents has occurred. Spilled
de-icing agents must be placed back into the storage facility.

Section 616.725 Closure


a) At closure, all de-icing agents must be removed from the site, discharge
control equipment and discharge confinement structures.

b) All de-icing agents that are to be disposed of in the State of Illinois must
be disposed of at a disposal site permitted by the Agency under the Act.


Back to top
